The width of railroad tracks, more precisely known as the track gauge, is one of the most fundamental and critical specifications in all of railway engineering. This single measurement dictates everything from vehicle design and network interoperability to speed potential and load-carrying capacity. It defines the distance between the inner faces of the two parallel rails that form the track. This technical guide Xingrail provides a detailed examination of track gauge, exploring the specifications, dimensions, and performance characteristics that define the width of railroad tracks across the globe.

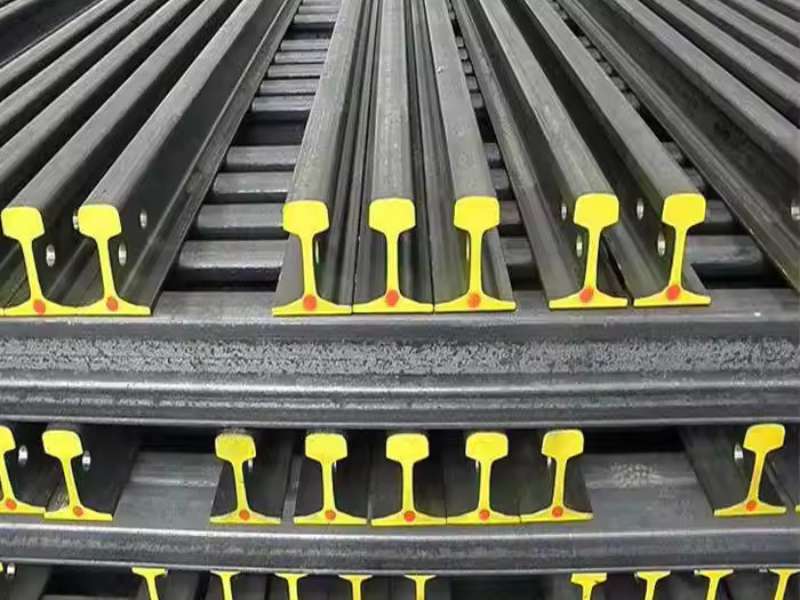

Width of Railroad Tracks

Track Gauge and Its Specifications

Track gauge is measured between the inner faces of the rail heads, at a point approximately 14 mm to 16 mm (about 5/8 inch) below the top of the rail head. This specific measurement point is crucial because it corresponds to where the wheel flange makes contact, ensuring accurate guidance. While there are dozens of gauges in use worldwide, they are broadly categorized into three main types: standard gauge, broad gauge, and narrow gauge.

Standard Gauge: The Global Benchmark for Width of Railroad Tracks

Standard gauge is defined as 1,435 mm (4 feet, 8 ½ inches). This is the most common track width in the world, used by approximately 55% of all railways. Its prevalence provides significant advantages in terms of international interoperability and a mature, cost-effective supply chain for rolling stock and track components.

  • Measurement: 1,435 mm (4′ 8 ½”)
  • Application: High-speed rail, mainline freight, mixed-traffic networks, and passenger systems across North America, Western Europe, China, and many other regions.
  • Performance Characteristics: Standard gauge offers an excellent balance between stability and construction cost. It is wide enough to support high speeds and heavy axle loads while being narrow enough to allow for reasonably tight curve radii without excessive wheel squeal or wear. It is the proven standard for high-speed lines, with trains regularly exceeding 300 km/h (186 mph) on tracks of this width.

Broad Gauge Systems

Any track gauge wider than 1,435 mm is considered broad gauge. These systems were often developed with the goal of achieving greater stability, which theoretically allows for larger vehicles and heavier loads.

  • Russian Gauge (1,520 mm / 4′ 11 ⅞”): Used in former Soviet Union countries, Finland, and Mongolia. It is the second most common gauge in the world.
  • Iberian Gauge (1,668 mm / 5′ 5 21/32″): Used in Spain and Portugal. Spain is actively converting many of its lines to standard gauge to improve connectivity with the rest of Europe.
  • Indian Gauge (1,676 mm / 5′ 6″): The standard in India, Pakistan, Bangladesh, Sri Lanka, and parts of South America. It is the widest track gauge in common use for passenger traffic globally.

The primary advantage of a wider gauge is enhanced lateral stability, which can contribute to a smoother ride and a higher theoretical load-bearing capacity. However, broad gauge tracks require a larger land footprint, wider tunnels, and more materials for sleepers and ballast, increasing construction costs.

Narrow Gauge Systems

Narrow gauge refers to any track width less than 1,435 mm. These systems were historically popular for industrial railways, mountainous terrain, and colonial expansion due to their lower construction costs and ability to handle sharper curves.

  • Cape Gauge (1,067 mm / 3′ 6″): Widely used in Southern and Central Africa, Japan, Taiwan, and parts of Australia. It is a highly versatile gauge capable of handling significant freight and passenger traffic.
  • Metre Gauge (1,000 mm / 3′ 3 ⅜”): Found in Southeast Asia, East Africa, Brazil, and on many secondary lines in Europe.
  • Three-Foot Gauge (914 mm / 3′): Common on historical railways in the United States (especially in mining regions) and in parts of South America.

The main benefit of narrow gauge is the reduced cost of construction. The ability to navigate tighter curves is a significant advantage in difficult, mountainous terrain where extensive earthworks would be prohibitively expensive. The trade-off is a lower speed potential and reduced stability, which limits the size and weight of the trains that can be operated.

Rail Profiles and Compatibility with the Width of Railroad Tracks

While the width of railroad tracks defines the distance between the rails, the profile of the rail itself is what provides the running surface. The choice of rail profile is influenced by the track gauge and the intended traffic. Heavier rail sections are used on high-tonnage standard and broad gauge lines, while lighter sections are suitable for narrow gauge or low-traffic tracks.

The rail profile (e.g., 115RE, 136RE, 60E1) dictates the shape of the rail head. The track gauge measurement remains consistent regardless of the rail profile used, as it is always taken between the inner faces. However, the fastening system must be compatible with both the rail profile’s foot width and the sleeper design to maintain the correct gauge under all conditions.

Gauge Type

Measurement

Key Advantage

Key Disadvantage

Typical Rail Profiles Used

Standard

1,435 mm (4′ 8 ½”)

Excellent balance of stability, speed, and cost; high interoperability.

Can be challenging in extremely mountainous terrain.

115RE, 136RE, 141RE, 60E1

Broad

> 1,435 mm

High lateral stability, potential for larger rolling stock.

Higher construction cost, limited interoperability.

Heavy-duty equivalents of UIC60 or AREMA 136RE+

Narrow

< 1,435 mm

Lower construction cost, ability to handle very sharp curves.

Lower speed potential and load capacity.

Lighter sections like ASCE 85, 49E1, or regional standards.

Rail Clips and Gauge Retention

Maintaining the precise width of the track is a primary function of the rail fastening system, particularly the rail clips. These engineered springs exert a constant clamping force on the rail foot, securing it against the tie plate or concrete sleeper.

This system is critical for gauge retention. The shoulders provide a fixed stop that defines the position of the rail, while the clips prevent the rail from lifting or rotating out of place. On curved track, the outward centrifugal force from a passing train tries to spread the gauge. A robust fastening system with high-quality elastic clips is essential to resist forces and keep track width within tight tolerances of a few millimeters. The clip strength, such as 18 mm or 20 mm spring steel, is chosen based on expected lateral forces, which increase on tracks with heavy loads and high speeds.

In essence, the rail profile provides the running surface, but it is the fastening system that guarantees the integrity of the track gauge. The combination of these components ensures that the railroad track can safely and reliably perform its function of guiding trains.
