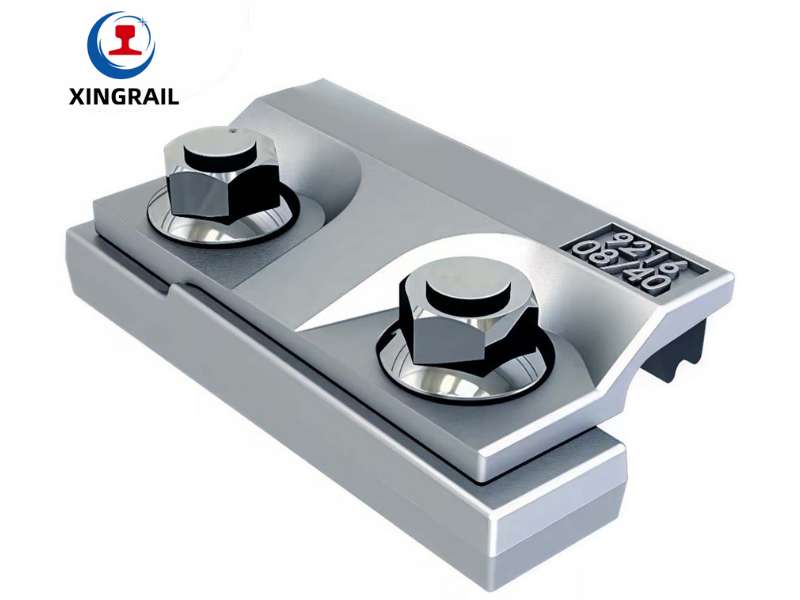

A Comprehensive Guide to Railroad Clip from Xingrail

Railroad clip play a vital role in modern railway systems, ensuring track stability and safety. These elastic components fasten steel rails to sleepers, maintaining gauge distance and absorbing vibrations from passing trains. In this guide, Xingrail delves into the types, specifications, and manufacturing processes of railroad clips.

Railroad Clip Types

Different fastening designs are used in railway systems. Different clips are produced by manufacturers to meet different operational requirements. The industry is divided into a number of common categories.

1. Rail Clips with Elastic

The most popular fastener is still the elastic rail clip. It offers a constant clamping force. It can deflect under load thanks to its design. The sleeper is shielded from harm by this deflection. When the load is released, the clip reverts to its initial shape. For high-speed lines, this elasticity is necessary.

2. E-Style Clips

The elastic family includes the E-type clip. It has a unique shape that is similar to the letter “E”. This shape was preferred by designers due to its effectiveness. In comparison to its weight, it provides a strong clamping force. These are easily installed by installation crews using specialized equipment. They are also preferred by maintenance teams for simple replacement.

3. Tension Clips from SKL

SKL clips provide an alternative method of fastening. These are frequently used by engineers in the W-fastening system. A high toe load is provided by this clip. In heavy-haul railway applications, it performs exceptionally well. Significant vertical rail deflection is possible with the SKL design. This feature lowers the frequency of maintenance.

4. Clips from PR Series

The PR series is used in some areas. These are made by manufacturers for particular kinds of sleepers. They are frequently found in older track systems. They are still applicable to maintenance projects, though.

5. Clips from Nabla

The Nabla clip makes use of a special geometry. It is compatible with certain base plates. This system offers superior electrical insulation. It is a common option for metro systems and tramways.

Railroad Clip Specifications

For component selection, engineers need exact data. Performance is determined by the dimensions and characteristics of the material. Below is a comprehensive table. Standard specifications for popular railroad clip models are shown in this table.

In contrast, the E2007 provides better strength for large loads. For high-speed lines, the SKL14 offers exceptional fatigue resistance. Engineers must match the clip specification with the anticipated axle load. Manufacturers typically use high-grade spring steel for the material composition. The required toughness and elasticity are provided by 60Si2MnA steel.

Railroad Clip Manufacturing Process

Producing a high-quality railroad clip requires precise metallurgical procedures. Xingrail follows strict manufacturing processes, and each step influences the final mechanical properties.

1. Selection of Raw Materials

Procurement is the first step in the process. Superior spring steel bars are chosen by sourcing managers. Usually, they select 38Si7 or 60Si2MnA grades. Inspectors check the chemical composition right away. They confirm the amount of manganese and carbon. The basis for durability is ensured by this step.

2. Heating and Shearing

Steel bars are fed into shearing machines by production teams. The bars are precisely cut to length by the machine. The cut bars then go into the heating furnace. The temperature is quickly raised by induction heaters. The steel can reach temperatures between 950°C and 1000°C. The metal becomes malleable for forming at this temperature.

3. Forming and Forging

The hot bars are moved to the press by robotic arms or expert operators. Custom dies are used in the forging press. The steel is stamped into the precise clip shape by the machine. This takes place in a matter of seconds. Heat loss is prevented by the speed. For each railroad clip, precise dies guarantee dimensional accuracy.

4. Quenching

The clips are quenched as soon as they are formed. The clips fall into a tank of quenching oil. The steel’s microstructure is changed by this quick cooling. Martensite is produced as a result. The steel gets its hardness from this stage. But at this point, the steel is brittle.

5. Tempering

The brittleness is corrected by tempering. The clips go into a furnace for tempering. The temperature remains between 450°C and 500°C. The clips stay here for a predetermined amount of time. Internal tensions are reduced by this procedure. It strikes the ideal ratio of toughness to hardness. This is where the clip acquires its important elasticity.

6. Final Packing and Inspection

Teams responsible for quality control examine the completed batch. They compare measurements to blueprints. Workers apply surface treatments like paint or oil to prevent rust during storage. The packing department then crates the clips for shipping.

Railroad Clip Applications in Fastening Systems

The fastening system’s central component is railroad track clips. They don’t operate independently. They engage with sleepers, rail pads, and insulators.

1. Integration of Fastening Systems

The clip compresses the rail foot and sits inside a base plate or shoulder. This assembly attaches the rail to the sleeper. The clip applies a downward force that prevents the rail from lifting. It also resists longitudinal motion and stops rail creep caused by thermal expansion.

2. Keeping the Track Stable

Gauge retention is necessary to track stability. The rail is kept from tilting outward by the railroad clip. Curves are subject to tremendous lateral forces from trains. This energy must therefore be absorbed by the clips. Derailment could result from a failure here. The train wheels remain on the track thanks to sturdy clips.

3. Safety at High Speed and Heavy Haul

Heavy haul lines carry massive loads that damage the track structure. Stronger clips like the E2007 reduce this stress. High-speed lines also generate high-frequency vibrations, and elastic clips reduce those vibrations. This prevents cracks in the concrete sleeper. As a result, the clip directly improves passenger safety.

Common Questions Regarding Railroad Clips

1. What materials are used to make railroad clips?
   • Spring steel, such as 60Si2MnA, is commonly used for its strength and elasticity.
2. How are railroad clips manufactured?
   • Through processes like forging, quenching, and tempering.
3. What is the lifespan of a railroad clip?
   • Typically, 5 million cycles without breaking under standard conditions.
4. Why are railroad clips important in railway systems?
   • They secure rails to sleepers, ensuring track stability and safety.
