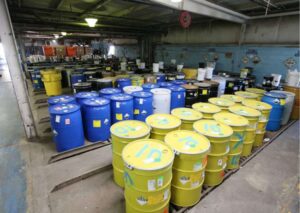

In hazardous waste facilities, safety and containment are the highest priorities. The specialized cranes used to handle barrels of chemical waste, contaminated soil, or other toxic materials must operate with flawless precision. These environments are often highly corrosive, with chemical fumes and spills creating an atmosphere that can rapidly degrade standard steel components. The crane rail system, the very foundation of these critical lifting operations, requires a fastening solution built to resist chemical attack and ensure long-term operational integrity.
The Challenge: Battling Corrosion in Hazardous Environments
The atmosphere inside a hazardous waste processing or storage facility is uniquely aggressive. Vapors from acids, alkalis, and various chemical compounds can cause accelerated corrosion on unprotected steel. Spills and wash-down procedures further expose equipment to corrosive agents. For a crane rail system, this poses a significant threat.
Traditional bolted rail clips are a major vulnerability in these conditions. The threads on bolts and nuts are susceptible to rust and chemical attack, which can cause them to seize or fail. Even minor corrosion can compromise the clamping force, allowing rails to loosen under the dynamic loads of crane movement. A loose rail can lead to misalignment, excessive wear on crane wheels, and potentially catastrophic failure—a risk that is unacceptable when handling hazardous materials.
9 Series Welded Rail Clips: The Corrosion-Resistant Solution
Engineered to perform in the world’s most demanding industrial settings, the 9 Series Heavy-Duty Welded Rail Clips provide a superior solution for hazardous waste facilities. By offering specialized corrosion protection options and a design that minimizes failure points, these clips ensure the reliability and safety of your crane operations. The key is a permanent, welded connection that eliminates the vulnerabilities of traditional bolted systems.
Key advantages for hazardous waste sites include:
- Superior Corrosion Resistance: Clips can be hot-dip galvanized or coated with special corrosion-resistant finishes to withstand aggressive chemical environments.
- Permanent Welded Strength: The forged steel base is welded directly to the support girder, creating a bond that is impervious to the loosening effects of vibration and chemical attack.
- Chemically-Resistant Components: The integrated vulcanized rubber nose is formulated to resist a wide range of chemicals, oils, and greases, ensuring it does not degrade over time.
- Self-Locking Design: The innovative wedge mechanism tightens its grip on the rail as lateral forces increase, ensuring the rail stays secure even during abrupt movements.
Explore our full range of heavy-duty crane rail clips to select the right corrosion-resistant options for your facility. For detailed material specifications, download our comprehensive technical PDF.
Technical Comparison: XINGRAIL 9 Series Models
Choosing the appropriate clip and coating is vital for ensuring long-term performance in a chemical-laden environment. The following table highlights the best applications for each 9 Series model.
|
Model |
Lateral Resistance |
Horizontal Adjustment |
Best Use Case |
|
XINGRAIL 9220/20 |
235 kN (24 tons) |
20 mm |
Recommended for primary gantry cranes handling heavy drums, sludge containers, and large contaminated items where load and chemical exposure are highest. |
|
XINGRAIL 9216/08 |
130 kN (13.3 tons) |
8 mm |
Ideal for overhead cranes used in processing and containment cells, providing robust performance for high-frequency movements. |
|
XINGRAIL 9120/15 |
120 kN (12.2 tons) |
15 mm |
Excellent for retrofitting older facilities. The generous adjustment range simplifies aligning rails on existing support structures that may have minor corrosion. |
|
XINGRAIL 9116/08 |
55 kN (5.6 tons) |
8 mm |
Well-suited for lighter-duty auxiliary cranes, such as those used for maintenance or handling smaller containers in less critical areas. |
The Importance of Reinforced Crane Rail Pads
While the clips provide secure fastening, Reinforced Crane Rail Pads play a critical role in isolating the system from both shock and chemical attack. These pads are an essential part of a complete, resilient rail solution in a hazardous environment.
- Chemical Barrier: The pad creates an impermeable barrier between the rail and the steel soleplate, preventing corrosive liquids from being trapped in this critical crevice.
- Shock and Vibration Damping: The pads absorb vibrations and impacts from crane movement, protecting the underlying concrete structure from stress that could lead to cracking and compromise containment.
- Load Distribution: By ensuring uniform contact between the rail and the girder, pads eliminate high-stress pressure points that could accelerate corrosion and metal fatigue.
Installation and Maintenance Protocols
Correct installation is fundamental to achieving a maintenance-free, corrosion-resistant system. Strict adherence to these protocols, detailed further in our technical PDF, is required for safety and compliance.
Welding Instructions
The clip’s base must be welded on three sides. The side parallel to the rail is left unwelded to allow the clip to function correctly.
- Weld Specification: A fillet weld with a 5mm throat thickness is required for maximum strength. For galvanized clips, special welding procedures are necessary to ensure proper fusion and maintain corrosion protection.
- Electrode Selection: Use low-hydrogen electrodes (e.g., AWS E7018 or E7028) to prevent hydrogen-induced cracking and ensure a durable, high-integrity weld.
Post-Weld Installation Steps
XINGRAIL 9220/20 and 9216/08 Installation:
- After welding the base, place the upper clip component over the rail foot.
- Insert the M20 Grade 8.8 bolt (available with specialized coatings) and washer.
- Tighten the bolt to a final torque of 350 Nm. This engages the self-locking wedge mechanism.
- Before final tightening, use the lateral adjustment (20mm for 9220, 8mm for 9216) to ensure the rail is perfectly aligned.
XINGRAIL 9120/15 and 9116/08 Installation:
- Position the upper clip over the rail on the pre-welded base.
- Insert the appropriate coated Grade 8.8 bolt: M20 for the 9120 and M16 for the 9116.
- Tighten the bolt to the specified torque: 275 Nm for the 9120 model and 175 Nm for the 9116 model.
- Align the rail using the available horizontal adjustment before applying the final torque to secure it.
Global Compatibility for Specialized Projects
Our heavy-duty fastening systems are designed for compatibility with a wide range of international rail standards, including DIN, AREA, British (BS), and others. This ensures they can be specified and integrated into hazardous waste projects anywhere in the world, meeting stringent local and international regulations.
Frequently Asked Questions (FAQ)
Q: What type of corrosion protection is best for our facility?
A: The best choice depends on the specific chemicals present. Hot-dip galvanizing is excellent for general corrosion resistance, but for highly acidic or alkaline environments, specialized epoxy or polymer coatings may be recommended. Contact our technical team for a consultation.
Q: Why are welded clips safer than bolted clips in a hazardous environment?
A: Welded clips eliminate the primary failure point of bolted systems—the threaded fastener. By creating a permanent bond, they cannot be loosened by vibration or compromised by thread corrosion, ensuring the rail remains secure for the life of the facility.
Q: How does the rubber nose hold up to chemical exposure?
A: The vulcanized synthetic rubber is a high-grade polymer specifically formulated to be resistant to a broad spectrum of chemicals, oils, ozone, and UV radiation, ensuring a service life of over 15 years in even the most challenging conditions.
