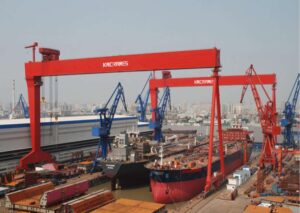

Heavy Cargo Terminals: Rail Systems for Cranes Handling Oversized and Heavy Cargo

In the world of logistics, Heavy Cargo Terminals handle the most challenging lifts. These specialized facilities are designed to manage project cargo—oversized, indivisible, and extremely heavy items like massive industrial turbines, bridge sections, or pre-fabricated modules. The success of these operations rests on the absolute stability of the crane rail system. Supporting cranes capable of lifting hundreds or even thousands of tons requires a fastening infrastructure that can withstand extreme forces without failure.

The Challenge: Managing Colossal Forces and Project Cargo

Heavy cargo terminals present a unique set of challenges. Unlike standard container or bulk operations, lifting project cargo generates immense, concentrated loads. When a crane hoists a 500-ton generator, the vertical force on the rail is enormous. As the crane travels, the lateral forces created during acceleration and braking are equally powerful.

Conventional bolted fasteners are often not suitable for these conditions. The repetitive stress cycles and shock loads can cause bolts to loosen over time. This leads to rail misalignment or “rail snaking,” which poses a catastrophic risk when handling expensive, one-of-a-kind cargo. To maintain safety and operational integrity, engineers require a high-performance heavy-duty crane rail fastening system that offers unmatched lateral resistance and vibration damping.

9 Series Welded Rail Clips: The Heavy-Duty Solution

The 9 Series Heavy-Duty Welded Rail Clips are specifically engineered to handle the extreme forces present in heavy cargo terminals. Unlike friction-based clips that can slip under intense loads, these systems feature a base that is welded directly to the steel girder or soleplate. This creates a permanent mechanical bond, ensuring long-term rail stability even under the heaviest lifts.

Key advantages include:

• Forged Strength: A welded base creates a permanent mechanical bond with the steel girder, offering superior resistance compared to bolted alternatives.
• Self-Locking Mechanism: The unique wedge-action design ensures constant downward pressure. As lateral forces increase, the clip’s grip tightens, preventing any rail movement.
• Vibration Damping Solutions: An integrated vulcanized rubber tongue absorbs shock loads from lifting and moving heavy cargo, protecting the crane structure and the foundation from fatigue damage.

Heavy-Duty 9 Series Welded Rail Clips Recommendation

Choosing the right clip is critical for the safety and efficiency of a heavy cargo terminal. The selection depends on the maximum crane wheel load and the intensity of operations.

XINGRAIL 9220/20/45

This is the ultimate solution for extreme loads. A high-capacity forged clamp designed to provide unmatched lateral resistance (235 kN), it is the premier choice for the main cranes at a heavy cargo terminal responsible for the most demanding lifts.

• Download 9220 Technical PDF

9220 Welded Rail Fixing Clips Installation:

1. Preparation: Ensure the steel beam surface is clean and dry. Position the clip base according to the rail width, allowing for the required adjustment.
2. Welding: Weld the clip base on three sides (the two sides perpendicular to the rail and the back side away from the rail). Do not weld the side closest to the rail to prevent heat transfer.
3. Weld Spec: Use a 5mm throat thickness fillet weld. For maximum strength, use low-hydrogen electrodes such as AWS E7018 or E7028.
4. Torque: After the weld cools, assemble the clip and tighten the bolt to 350 Nm.

XINGRAIL 9216/08/40

A robust choice for supporting gantry cranes or other medium-to-heavy rail-mounted equipment within the terminal’s storage and staging areas. It provides excellent stability with 130 kN of lateral resistance.

• Download 9216 Technical PDF

9216 Welded Rail Fixing Clips Installation:

1. Positioning: Align the base plate relative to the rail foot.
2. Welding: Weld the base on three sides (excluding the rail side), using a 5mm throat thickness fillet weld and AWS E7018 electrodes.
3. Adjustment: This unit allows for 8mm of lateral adjustment to correct gauge width before final tightening.
4. Torque: Tighten the bolt to 350 Nm.

XINGRAIL 9120/15/38

Terminals built on reclaimed land can experience foundation settlement. The 9120 clip is ideal for these situations, offering a generous 15mm adjustment range after welding to allow for perfect rail re-alignment without cutting and re-welding.

• Download 9120 Technical PDF

9120 Welded Rail Fixing Clips Installation:

1. Alignment: Place the weldable base to allow for the full adjustment range.
2. Welding: Perform a 5mm throat thickness fillet weld on the three outer sides using low-hydrogen AWS E7018 or E7028 electrodes.
3. Torque: Secure the clip by tightening the bolt to 350 Nm.

XINGRAIL 9116/08/3

For auxiliary cranes, maintenance bays, or areas with narrow girders, the 9116 provides a compact yet powerful fastening solution. It offers 55 kN of resistance for precise positioning in high-frequency, lower-load applications.

• Download 9116 Technical PDF

9116 Welded Rail Fixing Clips Installation:

1. Setup: Position the clip on the narrow girder flange.
2. Welding: Weld the three accessible sides using a 4mm throat thickness fillet weld and AWS E7018 electrodes.
3. Torque: Once cooled, install the upper clip component and torque the bolt to 125 Nm.

Technical Comparison: XINGRAIL 9 Series Models

Model	Lateral Resistance	Horizontal Adjustment	Best Use Case
9220/20/45	235 kN	20 mm	Primary heavy-lift cranes, project cargo
9216/08/40	130 kN	8 mm	Support gantries, staging areas
9120/15/38	120 kN	15 mm	Terminals needing alignment flexibility
9116/08/3	55 kN	8 mm	Auxiliary cranes, maintenance bays

Why Use Reinforced Crane Rail Pads?

While clips manage lateral forces, the Crane Rail Pad is essential for absorbing the immense vertical shock loads. Implementing proper vibration damping solutions is crucial for protecting the entire foundation of the crane rail system.

1. Shock Absorption: Reinforced pads act as a buffer, absorbing the high-impact energy from heavy lifts. This prevents shockwaves from damaging the concrete foundation and causing fatigue in the steel structures.
2. Load Uniformity: No steel surface is perfectly flat. The pad compensates for minor irregularities on the girder, ensuring the massive vertical load from the crane wheel is distributed evenly across the rail foot. This eliminates “point loading,” a primary cause of rail fracture.
3. Fretting Corrosion Prevention: By creating a barrier between the rail and the steel girder, the pad prevents the micro-movements that cause fretting and lead to corrosion, a critical benefit in coastal environments.

Installation & Maintenance Best Practices

In project cargo logistics, delays are unacceptable. The rail fastening system must be designed for rapid installation and virtually zero maintenance.

• Welding Protocol: The clip base must be welded on three sides (excluding the side parallel to the rail) using a 5mm throat thickness fillet weld (4mm for the 9116 model).
• Electrode Selection: Use low-hydrogen electrodes such as AWS E7018 or E7028 to prevent hydrogen cracking in the weld zone.
• Torque Specifications: Ensure the correct tightening torque is applied to engage the self-locking mechanism effectively.
• Post-Weld Adjustment: Utilize the lateral adjustment capability (up to 20mm on the 9220 model) to align the rail perfectly before final tightening, simplifying the installation process.

Global Rail Compatibility

Our heavy-duty crane rail fastening systems are engineered to meet international standards. The rail track profile itself must be specified to handle the extreme wheel loads of heavy-lift cranes.

• European Standards:DIN536 Standard Rails like A120 and A150 are the gold standard, with a wide base and thick web to handle the highest wheel loads.
• North American Standards: Heavy-duty AREA Railway Standard Track profiles are used for the most demanding gantry systems in North American project cargo terminals.
• British & Australian: Fits BS Railway Tracks and Australian Standard (AS) profiles.
• Asian & Regional: Fully compatible with China Standard ISO/CE tracks and India Standard Railway Tracks.

Frequently Asked Questions (FAQ)

Q: Why are welded clips essential for heavy cargo terminals?
A: Bolted clips can shift or fail under the extreme lateral and shock loads of project cargo. Welded clips provide a rigid, permanent bond that prevents any rail movement during critical lifts, ensuring maximum safety.

Q: Do I need special rail pads for heavy loads?
A: Yes. Standard pads may compress too much or disintegrate under extreme weight. Reinforced, heavy-duty pads are required to distribute the load effectively without failure.

Q: Can these clips be used on concrete foundations?
A: Yes. The clips are welded to a steel soleplate, which is then securely anchored to the concrete foundation. This design transfers the strength and stability of the welded system to the concrete structure.
