Heavy Manufacturing and Fabrication Hall Solution: Versatile Welded Fastening Systems for EOT Cranes

In the high-pressure environment of heavy manufacturing and fabrication, the Electric Overhead Traveling (EOT) crane is the backbone of production. Whether assembling massive mining trucks, fabricating pressure vessels, or moving steel coils, these facilities rely on cranes to keep work flowing through the bays. The crane rail system supporting these operations is often an afterthought until it fails. However, the dynamic loads involved in lifting, flipping, and positioning heavy weldments require a fastening infrastructure that offers unyielding stability. As manufacturing tolerances tighten and safety standards rise, high-performance heavy-duty crane rail fastening is essential for maintaining productivity and worker safety.

The Challenge: Dynamic Loading and Production Versatility

Fabrication halls are dynamic environments. Unlike a power plant crane that lifts rarely, manufacturing EOT cranes are in constant motion, often performing complex maneuvers that stress the rail system:

1. Shock Loading: Flipping heavy steel structures or “breaking out” castings creates sudden vertical and lateral shock loads that travel directly into the rail clips.
2. High Duty Cycles: In a busy production shop, cranes may run 24/7. This continuous vibration can rapidly loosen conventional bolted clips.
3. Lateral Forces: Turning loads or dragging heavy components (though discouraged) generates significant side-thrust on the rails.

Conventional friction-based fasteners often struggle here. The vibration from daily operation causes nuts to back off, leading to rail misalignment. This not only damages the crane wheels but can cause the crane to skew, halting production. To ensure continuous output, facility managers need a manufacturing crane rail system that combines the strength to handle heavy static loads with the durability to survive constant dynamic cycling.

9 Series Welded Rail Clips: The Versatile Solution

The 9 Series Heavy-Duty Welded Rail Clips are engineered to provide the “fit and forget” reliability needed in busy factories. By welding the base directly to the crane girder, these systems eliminate the maintenance headache of retightening bolts found in older designs.

Key advantages include:

• Forged Strength: The welded base creates a permanent structural bond with the girder, offering superior resistance to the lateral forces common in heavy fabrication.
• Self-Locking Mechanism: The wedge-action design ensures the rail is held tight. As the crane brakes or accelerates, the clip’s grip reinforces itself, preventing the rail from creeping.
• Vibration Damping: The integrated vulcanized rubber nose absorbs the noise and harshness of steel-on-steel contact, reducing operator fatigue and protecting the crane’s electronics from shock.

Heavy-Duty 9 Series Welded Rail Clips Recommendation

Selecting the right clip is critical for optimizing your facility’s maintenance budget and uptime. The choice depends on the crane capacity and the nature of the work in each bay.

XINGRAIL 9220/20/45

This is the heavy-hitter for the Main Assembly Bay. Designed for cranes lifting 100+ tons, it provides 235 kN (24 tons) of lateral resistance. It is ideal for the primary EOT cranes handling heavy machinery assembly or large casting movements.

• Download 9220 Technical PDF

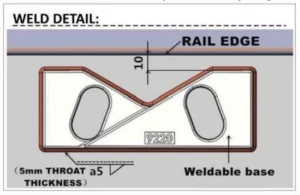

9220 Welded Rail Fixing Clips Installation:

1. Preparation: Clean the top flange of the girder to remove mill scale, oil, and paint. Position the clip base according to the specific rail width.
2. Welding: Weld the clip base on three sides (the two sides perpendicular to the rail and the back side). Do not weld the side closest to the rail to prevent heat distortion of the rail foot.
3. Weld Spec: Use a 5mm throat thickness fillet weld. Use low-hydrogen electrodes such as AWS E7018 or E7028 to ensure a ductile, crack-resistant weld.
4. Torque: After the weld cools, assemble the upper clip component and tighten the bolt to 350 Nm.

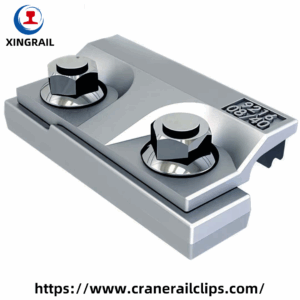

XINGRAIL 9216/08/40

The standard solution for Fabrication Bays and machine shops. With 130 kN (13.3 tons) of lateral resistance, it is perfect for 20-50 ton cranes used for feeding materials to laser cutters, press brakes, or welding stations.

• Download 9216 Technical PDF

9216 Welded Rail Fixing Clips Installation:

1. Positioning: Align the base plate relative to the rail foot, allowing for the clip’s 8mm of horizontal adjustment.
2. Welding: Weld the base on its three outer sides using a 5mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or equivalent low-hydrogen rods.
4. Torque: After cooling, assemble the clip and tighten the bolt to 350 Nm.

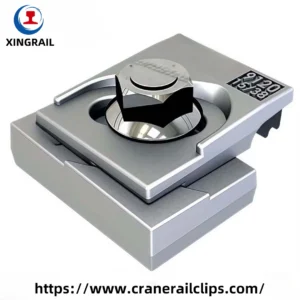

XINGRAIL 9120/15/38

Manufacturing halls often have long runways that can settle over decades of use. The 9120 offers 15mm of lateral adjustment, allowing maintenance teams to realign tracks to straight tolerances without the expensive process of cutting and re-welding bases.

• Download 9120 Technical PDF

9120 Welded Rail Fixing Clips Installation:

1. Alignment: Place the weldable base to accommodate the adjustment range.
2. Welding: Perform a 5mm throat thickness fillet weld on the three outer sides.
3. Electrodes: Low-hydrogen AWS E7018 or E7028.
4. Torque: Secure the clip by tightening the bolt to 350 Nm.

XINGRAIL 9116/08/3

Ideal for Auxiliary Hoists, semi-gantry cranes, or tool-handling systems on narrower girders. It provides 55 kN of resistance, offering a robust solution for lighter-duty cycles.

• Download 9116 Technical PDF

9116 Welded Rail Fixing Clips Installation:

1. Setup: Position the clip on the narrow girder flange.
2. Welding: Weld the three accessible sides using a 4mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or E7028.
4. Torque: Once cooled, install the upper component and torque the bolt to 125 Nm.

Technical Comparison: XINGRAIL 9 Series Models for Manufacturing

Model	Lateral Resistance	Horizontal Adjustment	Best Use Case
9220/20/45	235 kN	20 mm	Heavy Assembly EOT Cranes (100t+)
9216/08/40	130 kN	8 mm	Standard Fabrication Bays (20-50t)
9120/15/38	120 kN	15 mm	Runways needing realignment
9116/08/3	55 kN	8 mm	Tool handling, Semi-gantries

Why Use Reinforced Crane Rail Pads?

While clips hold the rail down, the Crane Rail Pad protects the investment in your building’s structure.

1. Noise Reduction: In a metal fabrication shop, noise levels are already high. The pad dampens the rumble of the crane, contributing to a safer, quieter work environment.
2. Load Distribution: It distributes the wheel loads evenly across the top flange of the girder, preventing localized crushing or cracking of the web under heavy static loads.
3. Component Protection: By isolating the rail from the girder, the pad absorbs the high-frequency vibrations from operations like grinding or hammering, protecting the clip welds from fatigue.

Installation & Maintenance Best Practices

Minimizing downtime is the goal of any production manager. A proper installation ensures your rail system lasts as long as the building.

• Welding Protocol: The clip base must be welded on three sides using a 5mm throat thickness fillet weld (4mm for the 9116).
• Electrode Selection: Always use low-hydrogen electrodes (AWS E7018 or E7028) to ensure the weld can withstand the dynamic shock loads of heavy manufacturing.
• Torque Specifications: Apply the correct torque to ensure the self-locking mechanism is engaged.
• Alignment Checks: Use the clip’s adjustment features to ensure the rail is straight. This minimizes wheel flange wear, which is a common maintenance cost in fabrication shops.

Global Rail Compatibility

Our heavy-duty crane rail fastening systems are compatible with the rail profiles used in manufacturing facilities worldwide.

• European Standards: Compatible with DIN536 rails (e.g., A65, A75, A100), common in European machinery production.
• North American Standards: Designed for ASCE (e.g., 60lb, 85lb) and heavy AREA rail sections used in US factories.
• Asian & Regional: Fully compatible with China Standard ISO/CE tracks (QU80, QU100), India Standard Railway Tracks, and GOST Standard Tracks.

Frequently Asked Questions (FAQ)

Q: Can these clips be installed on existing runways?
A: Yes. They are excellent for retrofitting. The old bolted clips can be removed, the surface cleaned, and the new welded bases installed to upgrade the runway’s capacity and reliability.

Q: How do these clips handle the dust from welding and grinding?
A: The welded design has fewer crevices than bolted clips, and the rubber nose seals the rail seat. This prevents metallic dust from accumulating and causing abrasion or corrosion under the rail.

Q: Are these suitable for high-heat areas like near furnaces?
A: Yes. The steel components are unaffected by standard shop heat. For extreme heat (direct exposure to furnaces), specialized high-temp pads and nose materials can be specified.
