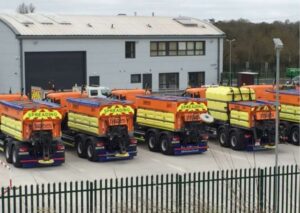

Highway Maintenance Depots: Rail Solutions for Cranes Handling Road Repair Equipment

Highway maintenance depots are the unsung nerve centers of our transportation infrastructure. These facilities work around the clock to ensure road safety, deploying heavy machinery and materials to repair sites at a moment’s notice. Inside these busy hubs, overhead and gantry cranes are essential for loading pavers, rollers, and barriers onto transport vehicles. To keep these operations running smoothly, the crane rail system must be as reliable as the roads they help maintain.

The Challenge: Reliability in High-Cycle Environments

Highway maintenance is a logistical challenge that never sleeps. Depots often operate 24/7, especially during emergency repairs or seasonal maintenance blitzes. The cranes in these facilities handle a diverse range of loads, from palletized materials to heavy road construction vehicles.

Unlike a shipyard crane that might make fewer, heavier lifts, depot cranes often face high-frequency cycling. They are constantly moving back and forth, stopping and starting. This repetitive motion generates significant lateral forces and vibrations that travel down through the crane wheels into the rail system.

Standard bolted rail clips can struggle in this environment. The constant “chatter” and vibration can cause nuts to back off, leading to loose rails. A loose rail means misalignment, which causes uneven wear on crane wheels and can even derail operations entirely. For a depot manager, downtime isn’t just an inconvenience; it delays critical road repairs.

9 Series Welded Rail Clips: Built for the Long Haul

To combat the wear and tear of high-cycle operations, highway maintenance depots are turning to the 9 Series Heavy-Duty Welded Rail Clips. These fastening systems are designed to provide a “fit and forget” solution, minimizing maintenance requirements so crews can focus on the road, not the rails.

By welding the clip base directly to the steel girder, the 9 Series eliminates the weak points found in traditional friction-based systems.

Key advantages for maintenance depots include:

• Permanent Stability: The welded connection ensures the rail foundation remains solid, regardless of how many cycles the crane performs daily.
• Self-Tightening Grip: The unique wedge action of the clip design means that as lateral forces are applied during crane movement, the clip actually grips the rail tighter, preventing “rail snaking.”
• Noise and Vibration Reduction: Integrated vulcanized rubber noses dampen the noise and vibration from crane travel. In a busy depot, reducing noise pollution is a key safety benefit for ground crews.

Explore our full range of heavy-duty crane rail clips to find the right fit for your facility. For detailed specifications and load charts, download our Technical PDF.

Technical Comparison: XINGRAIL 9 Series Models

Not all cranes in a depot are created equal. You might have a heavy-duty gantry for lifting pavers and a lighter overhead crane for maintenance workshops. The table below helps identify the right 9 Series model for each application.

Why Reinforced Crane Rail Pads Matter

While the clips hold the rail in place, the interface between the rail and the ground is just as critical. Reinforced Crane Rail Pads are the shock absorbers of the rail system.

• Vibration Isolation: In a depot where office spaces might be attached to the warehouse, dampening vibration is crucial. Pads absorb the rumble of the crane, protecting the building structure.
• Load Uniformity: They ensure the weight of the crane is spread evenly across the girder. This prevents “point loading,” which can crack concrete or deform steel supports over time.
• Corrosion Protection: Depots often store road salt and de-icing chemicals. These corrosive agents can attack steel. Pads isolate the rail from the soleplate, preventing fretting corrosion that is accelerated by salty environments.

Installation & Maintenance Protocols

To get the most out of your rail system, proper installation is non-negotiable. The 9 Series is designed for easy installation, but strict adherence to the protocol ensures a lifespan that matches your facility.

Welding Instructions

The base of the clip must be securely welded to the support structure.

• Weld Location: Weld along three sides of the clip base. Crucial: Do not weld the side that runs parallel to the rail.
• Weld Size: Apply a fillet weld with a minimum 5mm throat thickness.
• Electrode Type: Use low-hydrogen electrodes (like AWS E7018 or E7028) to prevent cracking in the weld zone, especially in unheated depots during winter.

Step-by-Step Installation

For XINGRAIL 9220/20 and 9216/08 Models:

1. Position: Once the base is welded and cooled, place the upper clip component onto the rail foot.
2. Bolt Insertion: Insert the high-strength M20 Grade 8.8 bolt and washer.
3. Torque: Tighten the bolt to 350 Nm. This torque is critical to engage the self-locking mechanism.
4. Adjustment: Before final torque, use the lateral adjustment capability (20mm for the 9220, 8mm for the 9216) to align the rail perfectly straight.

For XINGRAIL 9120/15 and 9116/08 Models:

1. Position: Place the upper clip over the rail on the pre-welded base.
2. Bolt Insertion: Insert the M20 bolt (for 9120) or M16 bolt (for 9116). Always use Grade 8.8 hardware.
3. Torque: Tighten to 275 Nm for the 9120 model and 175 Nm for the 9116 model.
4. Adjustment: Utilize the horizontal adjustment range to correct any minor rail deviations before locking it down.

Global Compatibility

Whether your depot is in Europe, North America, or Asia, our systems are ready to install. The 9 Series is compatible with:

• DIN Rails: (e.g., A75, A100) common in European machinery.
• AREA Rails: Standard for North American heavy systems.
• Asian Standards: Fully compatible with Chinese and Indian rail profiles.

Frequently Asked Questions (FAQ)

Q: Can these clips handle the corrosive environment of a salt storage depot?
A: Yes. The steel components can be galvanized or specially coated upon request, and the vulcanized rubber nose is naturally resistant to chemical degradation, ensuring longevity even in salty air.

Q: How often do welded clips need to be retightened?
A: Unlike bolted clips that require regular torque checks, properly installed welded clips are virtually maintenance-free regarding tightness. We recommend annual visual inspections as part of general safety protocols.

Q: Do you offer installation support?
A: We provide comprehensive technical guides and can offer remote consultation to ensure your installation team gets it right the first time.
