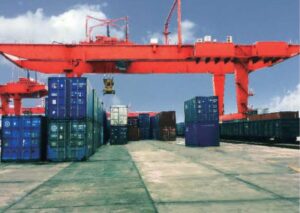

Intermodal terminals are the high-speed intersections of the global supply chain. It’s where cargo seamlessly transitions between ships, trains, and trucks. The efficiency of these terminals hinges on the performance of their crane systems. Rail-Mounted Gantry (RMG) cranes and rubber-tired gantry (RTG) cranes operate on tight schedules, lifting thousands of containers daily. The foundation for this high-velocity operation is the intermodal terminal crane rail system.
The demands on these systems are immense. Cranes accelerate, brake, and trolley across the yard, generating powerful lateral forces that punish the tracks. A robust rail fastening solution is not just an option; it’s a necessity for maintaining operational tempo, ensuring safety, and maximizing throughput. A loose rail or a failed clip can bring a section of the yard to a grinding halt, creating costly bottlenecks that ripple through the logistics network.
9 Series Welded Clips: Securing Intermodal Throughput
The constant, repetitive motion of gantry cranes in an intermodal yard creates significant horizontal stress. Under these conditions, conventional bolted clips can loosen due to vibration. This leads to rail misalignment, accelerated wear on crane wheels, and potential derailment. For the non-stop environment of an intermodal terminal, a welded fastening system is the superior choice.
We recommend the 9 Series Heavy-Duty Welded Rail Clips for these demanding applications. The clip’s base is welded directly onto the steel girder or soleplate, forming a permanent, maintenance-free connection. This approach provides unmatched stability against the dynamic forces of crane operations.
Forged for Uninterrupted Operations
The 9 Series clips are forged from high-strength steel to withstand the intense duty cycles of a 24/7 intermodal facility. The weld creates a solid mechanical lock that won’t degrade over time, ensuring the rail stays precisely where it needs to be. This reliability is crucial for automated terminals where precision is paramount.
The Self-Locking Advantage
These clips feature a smart, wedge-action design that is self-locking. As lateral forces from the crane push against the rail, the clip’s design tightens its grip, applying constant downward pressure on the rail flange. This prevents “rail snaking” and ensures crane movements are smooth and predictable, which is vital for safe and efficient container handling.
Heavy-Duty 9 Series Welded Rail Clips Recommendation
Selecting the right clip for the specific cranes in your intermodal yard is critical for long-term performance. Here are our top recommendations for ensuring the stability of your terminal’s lifting equipment.
XINGRAIL 9220/20/45
As the most powerful clip in the series, the 9220 is designed for extreme lateral forces. It’s the perfect solution for the largest Rail-Mounted Gantry (RMG) cranes that span multiple railway lines and handle the heaviest container loads. Its high resistance is ideal for managing the forces from rapid acceleration and braking.

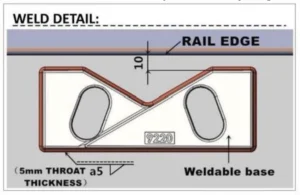

9220 Welded Rail Fixing Clips Installation:
- Welding: The clip base should be welded on three sides. The side closest and parallel to the rail must not be welded.
- Weld Size: Use a 5mm throat thickness fillet weld for maximum strength.
- Electrodes: Low-hydrogen electrodes, such as AWS E7018 or E7028, are required to prevent cracking.
- Torque: The bolt must be tightened to a final torque of 350 Nm.
XINGRAIL 9216/08/40
This versatile clip is a workhorse for the medium-to-heavy tracks found throughout an intermodal yard. It is well-suited for the automated stacking cranes (ASCs) that manage container stacks, offering a secure, maintenance-free welded base that handles repetitive, high-frequency movements.
9216 Welded Rail Fixing Clips Installation:
- Welding: Weld around the base, leaving the side facing the rail unwelded to avoid heat stress on the rail.
- Weld Specs: Follow standard procedures for welding on weldable grade steel.
- Adjustment: The clip allows for lateral rail adjustment before the final torque is applied, simplifying alignment.
XINGRAIL 9120/15/38
Over time, ground settlement can occur in large terminal yards. The 9120 clip provides a significant range of lateral adjustment after the base has been welded. This feature allows maintenance crews to re-align rails perfectly without needing to cut and re-weld the bases, saving significant time and cost.
9120 Welded Rail Fixing Clips Installation:
- Welding: Weld the clip base on all sides except the one closest and parallel to the rail.
- Weld Size: Apply a 5mm throat thickness fillet weld.
- Electrodes: Use low-hydrogen electrodes like AWS E7018 or E7028.
- Torque: Tighten the bolt to 350 Nm.
XINGRAIL 9116/08/3
Some intermodal operations, particularly smaller or older facilities, may have cranes running on narrow girders. The 9116 offers a compact yet powerful solution for these scenarios. It delivers precise positioning and is ideal for high-frequency duty cycles on smaller gantry or transfer cranes.
9116 Welded Rail Fixing Clips Installation:
- Welding: Weld the base on three sides, leaving the rail-facing side unwelded.
- Weld Size: Use a 4mm throat thickness fillet weld.
- Electrodes: Low-hydrogen electrodes (AWS E7018 or E7028) are recommended.
- Torque: Tighten to 125 Nm.
Technical Comparison Table
Use this table to match the right clip to your terminal’s operational needs and infrastructure.
|
Model |
Base Material |
Surface Treatment |
Lateral Force Resistance |
Horizontal Adjustment |
Applications |
Special Features |
|
9220/20/45 |
Q355/Q235 Steel |
Galvanized |
235 kN (24 tons) |
20 mm |
RMG cranes, heavy container yards |
Vulcanized rubber tongue, highest resistance |
|
9216/08/40 |
Q355/Q235 Steel |
Galvanized |
130 kN (13.3 tons) |
8 mm |
Automated stacking cranes (ASCs) |
Simplified installation, versatile |
|
9120/15/38 |
Q355/Q235 Steel |
Galvanized |
120 kN (12.2 tons) |
15 mm |
Terminals requiring alignment flexibility |
Noise reduction, direct foundation welding |
|
9116/08/3 |
Q355/Q235 Steel |
Galvanized |
55 kN |
8 mm |
Narrow crane beams, transfer cranes |
Compact design for tight spaces |
The Critical Role of Crane Rail Pads
While clips secure the rail laterally, the Crane Rail Pad is essential for managing vertical loads and absorbing shock. In an intermodal terminal, the constant dropping and lifting of containers sends shockwaves through the crane and into the rail system.
- Vibration Damping: A high-quality reinforced pad absorbs these damaging vibrations, protecting the concrete foundation from fatigue and cracking over millions of load cycles.
- Load Distribution: The pad compensates for minor imperfections in the rail or girder surface, distributing the crane wheel’s vertical load evenly. This prevents “point loading,” a major cause of rail fatigue and fracture.
- Wear Prevention: By creating a barrier between the steel rail and the steel or concrete support, the pad eliminates fretting and associated wear, extending the life of the entire track system.
Maximizing Uptime Through Efficient Installation
In a 24/7 logistics environment, downtime is unacceptable. The 9 Series system is designed for both long-term reliability and installation efficiency.
- Easy Adjustment: The ability to make lateral adjustments after welding the bases allows installation crews to align rails with high precision quickly.
- Fit-and-Forget Reliability: Once installed and torqued, the system is designed to be virtually maintenance-free. The self-locking mechanism and robust materials ensure long-term performance without the need for constant re-tightening.
Recommended Rail Tracks for Intermodal Terminals
The choice of rail track is as important as the fastening system. Intermodal terminals require heavy-duty rail profiles capable of withstanding high wheel loads and constant traffic.
|
Standard |
Recommended Track Profile |
|
European / DIN |
DIN536 Standard Rails (e.g., A100, A120, A150) are the global standard for heavy gantry crane applications due to their wide base and durable design. |
|
North American |
AREA Railway Standard Track profiles are commonly used in North American intermodal yards, providing compatibility with heavy-haul rail infrastructure. |
|
British / Commonwealth |
BS Railway Tracks and Australian Standard AUS Tracks offer robust solutions for terminals in these regions. |
|
Asian / Regional |
China Standard ISO/CE Approved Tracks provide reliable, high-performance options for projects across Asia and beyond. |
