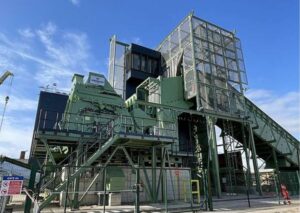

In the rugged environment of metal recycling, equipment durability isn’t just a bonus—it’s a requirement for survival. The cranes that loom over scrap yards, wielding massive electromagnets and grapples to sort mountains of twisted steel and heavy machinery, are the heartbeat of the operation. These machines work relentlessly, often in harsh conditions filled with dust, debris, and extreme impacts. Supporting this brutal workload requires a crane rail system that is as tough as the scrap being processed.
The Challenge: Shock Loads and relentless cycles
Metal recycling cranes operate in a chaotic and high-impact world. Unlike a warehouse crane that gently lifts palletized goods, a scrap yard crane aggressively grabs, tears, and drops heavy loads. Whether it’s a magnet crane dropping a two-ton ball to crush cast iron or a grapple crane ripping an engine block from a car chassis, the forces generated are violent and unpredictable.
These “shock loads” send tremors down the crane legs and directly into the rail fastening system. In addition to vertical impact, the rapid acceleration and deceleration of the trolley as it swings loads create immense lateral forces. Traditional bolted clips are notoriously unreliable in these conditions. The constant vibration and jarring impacts act like an impact wrench, slowly loosening nuts and bolts.
Once a rail clip loosens, the rail begins to move. This “rail snaking” leads to rapid wear on crane wheels, structural damage to the crane itself, and expensive downtime. In a business where margin depends on throughput, a stalled crane means lost revenue.
9 Series Welded Rail Clips: Built for Abuse
To withstand the punishment of a scrap yard, engineers are increasingly turning to the 9 Series Heavy-Duty Welded Rail Clips. These fastening systems are engineered to handle the specific abuses found in metal recycling, offering a permanent solution to the perennial problem of loose rails.
By welding the lower component of the clip directly to the steel girder, the 9 Series eliminates the reliance on friction that causes bolted systems to fail.
Key advantages for recycling plants include:
- Impact Resistance: The welded base creates a solid, immovable foundation that can absorb the shock of dropping heavy scrap without shifting.
- Self-Locking Security: The clip utilizes a wedge-action design. Paradoxically, as lateral forces try to push the rail sideways, the clip grips tighter, ensuring the rail stays exactly where it needs to be.
- Vibration Damping: Integrated vulcanized rubber noses act as a buffer, absorbing the high-frequency vibrations from the crane’s operation before they can damage the support structure or loosen the fastening.
Explore our full range of heavy-duty crane rail clips to find the toughest solution for your yard. For detailed load capacities and specifications, download our Technical PDF.
Technical Comparison: XINGRAIL 9 Series Models
Scrap yards employ various cranes, from massive gantry cranes spanning the main piles to smaller overhead units in maintenance shops. Selecting the right clip ensures you aren’t over-engineering a small line or under-specifying a critical one.
|
Model |
Lateral Resistance |
Horizontal Adjustment |
Best Use Case |
|
235 kN (24 tons) |
20 mm |
Primary Yard Cranes: The go-to choice for large gantry cranes handling the main scrap piles, magnet cranes, and drop-ball operations where shock loads are highest. |
|
|
130 kN (13.3 tons) |
8 mm |
Processing Areas: Ideal for cranes feeding shredders or shears, where loads are heavy but slightly more controlled than the main pile. |
|
|
120 kN (12.2 tons) |
15 mm |
Retrofit & Repair: Excellent for older yards with uneven runways. The extra adjustment range helps align rails on warped or shifted girders. |
|
|
55 kN (5.6 tons) |
8 mm |
Maintenance Shops: Perfect for auxiliary cranes used to repair heavy machinery and balers within the maintenance facility. |
The Role of Reinforced Crane Rail Pads
In a metal recycling plant, the Reinforced Crane Rail Pad is the first line of defense against structural fatigue. Placed between the rail and the steel girder, these pads are essential for longevity.
- Noise Reduction: Scrap yards are loud, but rail noise doesn’t have to add to it. Pads significantly reduce the screeching and rumbling of crane travel.
- Surface Protection: They prevent the steel rail from grinding against the steel girder. In a dusty environment full of abrasive metal grit, this grinding can quickly wear down support beams.
- Load Distribution: The pads ensure that the violent shock of a dropped load is distributed evenly across the clip and girder, preventing localized cracking or deformation.
Installation & Maintenance Protocols
A robust product requires robust installation. To ensure the 9 Series clips perform in the harsh environment of a recycling plant, follow these installation steps precisely. Refer to our Technical PDF for diagrams and further details.
Welding Instructions
The foundation of the system is the weld.
- Weld Pattern: Weld the clip base on three sides. Important: Leave the side parallel to the rail unwelded to allow the clip to function correctly.
- Weld Specs: Use a fillet weld with a minimum 5mm throat thickness.
- Electrode Selection: Use low-hydrogen electrodes (AWS E7018 or E7028). This is critical in outdoor yards where temperature fluctuations can make welds brittle if improper rods are used.
Step-by-Step Installation
For XINGRAIL 9220/20 and 9216/08 Models:
- Placement: After the welded base has cooled, position the upper clip component over the rail foot.
- Hardware: Insert the heavy-duty M20 Grade 8.8 bolt and washer.
- Torque: Tighten the bolt to 350 Nm. This specific torque is required to engage the self-locking wedge mechanism effectively.
- Alignment: Before final torque, use the lateral adjustment (20mm for 9220, 8mm for 9216) to straighten the rail. This is crucial in recycling yards where rails often shift due to impact.
For XINGRAIL 9120/15 and 9116/08 Models:
- Placement: Set the upper clip onto the pre-welded base, ensuring it sits correctly on the rail foot.
- Hardware: Insert the bolt (M20 for 9120, M16 for 9116). Ensure Grade 8.8 strength.
- Torque: Apply torque of 275 Nm for the 9120 model and 175 Nm for the 9116 model.
- Alignment: Use the horizontal adjustment feature to correct any deviations before locking the system down.
Global Compatibility
Scrap is a global commodity, and so is the machinery that moves it. Our rail systems are compatible with standards worldwide:
- DIN Rails: Common in European-built material handlers.
- AREA Rails: Standard for North American heavy industry.
- Asian Standards: Fully compatible with equipment from Chinese and Indian manufacturers.
Frequently Asked Questions (FAQ)
Q: Can these clips withstand the debris and metal dust in a scrap yard?
A: Yes. The design is self-cleaning to a degree, and the lack of complex moving parts means grit has little effect on the locking mechanism. The rubber nose is oil and abrasion-resistant.
Q: We use drop-ball cranes for breaking cast iron. Will these clips hold?
A: Absolutely. The 9220 model is specifically recommended for high-impact applications like drop-balling because the welded base cannot be jarred loose like a bolted connection.
Q: How do we handle rail replacement with welded clips?
A: The base remains welded to the girder. You simply unbolt the top clip, remove the old rail, place the new rail, and re-bolt the top clip. It makes rail replacement significantly faster than fully bolted systems.
