Military Equipment Depots: Heavy-Duty Clips for Cranes

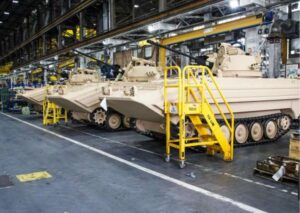

In military equipment depots, readiness is paramount. The massive maintenance facilities that service Main Battle Tanks (MBTs), Infantry Fighting Vehicles (IFVs), and self-propelled artillery are the backbone of operational availability. The overhead cranes in these depots perform immense lifts, hoisting 70-ton tank turrets, entire vehicle hulls, and heavy ordnance with precision and safety. The crane rail system supporting these operations must be as tough and reliable as the equipment it helps maintain. For facilities where failure is not an option, a robust, heavy-duty crane rail fastening system is a mission-critical requirement.

The Challenge: Extreme Loads and High-Impact Operations

Military maintenance depots are high-consequence environments where crane rail systems face a unique combination of extreme forces and the need for absolute reliability.

1. Massive, Concentrated Loads: Lifting a complete Abrams M1A2 turret or the powerpack from a Bradley Fighting Vehicle places enormous point loads on the crane wheels. The rail fastening system must withstand these immense static and dynamic forces without any sign of deflection or failure.
2. High-Impact Maintenance: The depot environment is filled with shock-loading activities. The use of heavy tools, the movement of tracked vehicles, and the occasional jarring placement of heavy components create significant vibrations that travel directly into the building’s structure and the crane rails.
3. Vibration and Loosening: This constant, high-impact vibration is the enemy of traditional bolted fasteners. Over time, it can cause nuts to loosen, leading to rail misalignment, which is a major safety hazard when lifting heavy, unbalanced loads like a tank turret.

Conventional bolted rail clips are a weak point in this demanding setting. Loosened bolts compromise rail alignment, which can cause dangerous load sway and accelerated wear on expensive crane components. To ensure the safety of personnel and the operational readiness of vital military assets, depots require a crane rail system that offers permanent stability and is invulnerable to shock and vibration.

9 Series Welded Rail Clips: The Combat-Ready Solution

The 9 Series Heavy-Duty Welded Rail Clips are engineered to provide the unwavering reliability needed for military logistics and maintenance. By using a forged steel base that is welded directly to the crane girder, this system creates a permanent, structural bond that eliminates the possibility of fasteners loosening under even the most severe conditions.

Key advantages for military depots include:

• Permanent Welded Stability: The welded connection becomes an integral part of the crane girder. It is impervious to the shock loads and vibrations common in a heavy vehicle maintenance facility.
• Self-Locking Mechanism: The unique wedge-action design ensures the rail is held under constant downward pressure. As the crane lifts a heavy load like a tank hull, the clip’s grip tightens, preventing any rail movement.
• Maintenance-Free Reliability: A welded system is a “fit and forget” solution. It requires no periodic inspection or retightening, reducing maintenance burdens and ensuring the crane is always ready for mission-critical tasks.

Heavy-Duty 9 Series Welded Rail Clips Recommendation

Selecting the right clip is a critical decision for ensuring the safety and efficiency of a military maintenance depot. The choice depends on the specific lifting requirements of each bay.

XINGRAIL 9220/20/45

This is the standard for Main Battle Tank and Heavy Armor Maintenance Bays. With an immense 235 kN (24 tons) of lateral resistance, it is engineered to provide maximum stability for the heaviest lifts, including turrets, hulls, and complete engine powerpacks.

• Download 9220 Technical PDF

9220 Welded Rail Fixing Clips Installation:

1. Preparation: The girder top flange must be meticulously cleaned and free of all oil, grease, and debris to ensure a high-quality welding surface.
2. Welding: Weld the clip base on three sides (the two sides perpendicular to the rail and the back side). Do not weld the side closest to the rail to avoid heat distortion.
3. Weld Spec: Use a 5mm throat thickness fillet weld. Utilize low-hydrogen electrodes like AWS E7018 or E7028 to create a strong, ductile weld capable of withstanding high-impact loads.
4. Torque: After the weld has completely cooled, assemble the upper clip and tighten the bolt to a final torque of 350 Nm.

XINGRAIL 9216/08/40

A robust choice for Light Armored Vehicle (LAV) and MRAP Maintenance Bays. It provides a solid 130 kN (13.3 tons) of lateral resistance, ensuring stability for cranes handling lighter vehicles, weapon stations, and major components.

• Download 9216 Technical PDF

9216 Welded Rail Fixing Clips Installation:

1. Positioning: Align the base plate relative to the rail foot, allowing for the clip’s 8mm of horizontal adjustment for final alignment.
2. Welding: Weld the base on its three outer sides using a 5mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or an equivalent low-hydrogen rod.
4. Torque: After cooling, assemble the clip and tighten the bolt to 350 Nm.

XINGRAIL 9120/15/38

Large depot buildings can experience foundation settlement over their long service life. The 9120 offers 15mm of lateral adjustment after welding, allowing maintenance teams to easily realign crane runways to maintain perfect tolerances without the need for major structural work.

• Download 9120 Technical PDF

9120 Welded Rail Fixing Clips Installation:

1. Alignment: Place the weldable base to accommodate the full adjustment range needed for future alignment corrections.
2. Welding: Perform a 5mm throat thickness fillet weld on the three outer sides.
3. Electrodes: Low-hydrogen AWS E7018 or E7028 are recommended.
4. Torque: Secure the clip by tightening the bolt to 350 Nm.

XINGRAIL 9116/08/3

A compact and effective solution for Ammunition and Ordnance Bays or smaller workshop cranes. Its smaller footprint and 55 kN of lateral resistance are ideal for lighter-duty, high-precision lifts of sensitive materials.

• Download 9116 Technical PDF

9116 Welded Rail Fixing Clips Installation:

1. Setup: Position the clip on the narrow girder flange.
2. Welding: Weld the three accessible sides using a 4mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or E7028.
4. Torque: Once cooled, install the upper component and torque the bolt to 125 Nm.

Technical Comparison: XINGRAIL 9 Series Models for Military Depots

Model	Lateral Resistance	Horizontal Adjustment	Best Use Case
9220/20/45	235 kN	20 mm	Heavy Armor & MBT Maintenance Bays
9216/08/40	130 kN	8 mm	Light Armored Vehicle & MRAP Bays
9120/15/38	120 kN	15 mm	Runways needing future realignment
9116/08/3	55 kN	8 mm	Ordnance Bays & Component Workshops

Why Use Reinforced Crane Rail Pads?

In a high-impact depot environment, the Crane Rail Pad is a vital component for system longevity and safety.

1. Shock Absorption: The pad acts as a powerful shock absorber, cushioning the impacts from heavy maintenance activities. This protects the welds from fatigue and the building’s concrete structure from cracking.
2. Vibration Damping: It isolates the crane rail from the ambient vibrations of running engines and moving vehicles, ensuring a smoother and more stable platform for lifting operations.
3. Load Distribution: It helps distribute the immense wheel loads from a 70-ton tank evenly across the girder, preventing localized stress that can lead to structural failure over time.

Installation & Maintenance Best Practices

A depot’s readiness depends on the reliability of its equipment. A properly installed rail system is a one-time investment in long-term availability.

• Welding Protocol: All welding should be performed by certified welders according to a pre-approved procedure. Use a 5mm throat thickness fillet weld (4mm for the 9116) on three sides of the base.
• Electrode Selection: Always use low-hydrogen electrodes (AWS E7018 or E7028) to ensure the weld is tough and ductile enough to withstand repeated shock loads.
• Torque Specifications: Applying the correct, verified torque is essential to engage the self-locking mechanism that ensures the system remains tight.
• Alignment Verification: The entire runway should be laser-aligned before final torqueing to ensure perfectly parallel rails, which is critical for safe tandem lifts.

Global Rail Compatibility

Our heavy-duty crane rail fastening systems are designed to be compatible with the rail profiles used in military and industrial facilities worldwide, adhering to stringent international standards.

• European Standards: Compatible with DIN536 rails (e.g., A100, A120, A150).
• North American Standards: Designed for heavy-duty ASCE and AREA rail sections as specified in government and military construction projects.
• Asian & Regional: Fully compatible with China Standard ISO/CE tracks, India Standard Railway Tracks, and GOST Standard Tracks used in military facilities across the globe.

Frequently Asked Questions (FAQ)

Q: Why is a welded system superior to a bolted one for heavy vehicle maintenance?
A: Because it is immune to the two biggest threats: shock and vibration. A welded clip becomes part of the girder and cannot be shaken loose, providing a level of permanent safety that bolted clips cannot match in this environment.

Q: Can these clips handle the load of a tandem lift for a long vehicle hull?
A: Absolutely. The 9220 model, with its 235 kN of lateral resistance, is specifically designed for such high-stress scenarios, ensuring the rails remain perfectly aligned when two cranes are working together.

Q: Is the system difficult to install?
A: The system requires standard welding procedures. The key is proper preparation and adherence to the specified weld size and electrode type. Once installed, it is completely maintenance-free.
