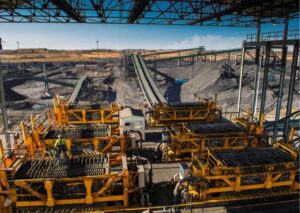

Mining and Mineral Processing Rail Solution: Ultra-Robust Fastening Systems

In the punishing world of mining and mineral processing, operational uptime is measured in tons and dollars. The rail systems that support stacker-reclaimers, train positioners, and overhead cranes are the bedrock of production. This infrastructure must endure relentless abuse from high-impact loading and pervasive, abrasive ore dust. As mines push for greater throughput, the mechanical stress on these rail systems intensifies, making an ultra-robust heavy-duty crane rail fastening system essential for preventing costly downtime and ensuring site safety.

The Challenge: High-Impact Loading and Abrasive Environments

The environment in a mine or processing plant is uniquely destructive to mechanical systems. Rail infrastructure for equipment like car dumpers and stacker-reclaimers is subjected to extreme conditions that cause conventional fasteners to fail.

1. High-Impact Loads: A rotary car dumper dropping 100 tons of iron ore generates immense shock loads that vibrate through the entire structure. Stacker-reclaimers create similar repetitive stresses.
2. Abrasive Dust: Hard, abrasive dust from ore grinding and transport works its way into mechanical joints. In bolted clips, this dust can seize threads or grind away at components, causing a loss of clamping force.
3. Corrosion: Many mineral processing operations use water and chemicals, creating a corrosive slurry that attacks standard steel fasteners.

Conventional bolted clips are a point of failure in these conditions. The constant vibration causes them to loosen, leading to rail misalignment and “rail snaking.” The combination of dust and corrosion makes re-tightening difficult and frequent maintenance a necessity. To keep a mine running 24/7, engineers require a mining rail fastening system that is built to withstand impact and contamination.

9 Series Welded Rail Clips: The Ultra-Robust Solution

The 9 Series Heavy-Duty Welded Rail Clips are engineered to thrive where other systems fail. By using a clip base that is welded directly to the steel support structure, this system eliminates the vulnerabilities of bolted designs, providing a permanent, maintenance-free solution.

Key advantages for mining include:

• Forged Strength: The welded base creates a permanent, mechanical bond that offers unmatched resistance to the extreme lateral and vertical impact loads common in mining.
• Self-Locking Mechanism: The unique wedge-action design ensures constant downward pressure on the rail. As shock loads from dumping and reclaiming try to lift or move the rail, the clip’s grip tightens.
• Sealed Against Contaminants: The design minimizes crevices where abrasive dust can accumulate. The vulcanized rubber nose creates a tight seal against the rail foot, preventing dust from getting into the load-bearing interface.

Heavy-Duty 9 Series Welded Rail Clips Recommendation

Selecting the correct clip is critical for the reliability of your mining operation. The choice depends on the specific equipment and the intensity of the operational loads.

XINGRAIL 9220/20/45

This is the ultimate solution for the most severe applications, such as the rails for Rotary Car Dumpers and primary Stacker-Reclaimers. With 235 kN (24 tons) of lateral resistance, it is built to handle the highest impact loads in the industry.

• Download 9220 Technical PDF

9220 Welded Rail Fixing Clips Installation:

1. Preparation: Thoroughly clean the steel support surface of all dust, grease, and moisture.
2. Welding: Weld the clip base on three sides (the two perpendicular sides and the back side). Do not weld the side closest to the rail. This prevents heat from distorting the rail.
3. Weld Spec: Apply a 5mm throat thickness fillet weld. Use low-hydrogen electrodes such as AWS E7018 or E7028 to ensure a crack-resistant weld.
4. Torque: After the weld cools completely, assemble the upper clip component and tighten the bolt to a final torque of 350 Nm.

XINGRAIL 9216/08/40

An ideal, robust choice for Overhead Cranes in processing plants and maintenance shops, as well as for the tracks of Train Positioners. It provides 130 kN (13.3 tons) of lateral resistance, ensuring stability for heavy, repetitive cycles.

• Download 9216 Technical PDF

9216 Welded Rail Fixing Clips Installation:

1. Positioning: Align the base plate relative to the rail foot, allowing for the clip’s 8mm of horizontal adjustment.
2. Welding: Weld the base on its three outer sides using a 5mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or equivalent low-hydrogen rods for best results.
4. Torque: After cooling, assemble the clip and tighten the bolt to 350 Nm.

XINGRAIL 9120/15/38

Mining infrastructure can shift due to ground settlement or thermal cycling. The 9120 offers 15mm of lateral adjustment after welding, allowing maintenance crews to realign long conveyor or stacker tracks without the need for cutting and re-welding.

• Download 9120 Technical PDF

9120 Welded Rail Fixing Clips Installation:

1. Alignment: Place the weldable base to accommodate the full adjustment range needed.
2. Welding: Perform a 5mm throat thickness fillet weld on the three outer sides.
3. Electrodes: Low-hydrogen AWS E7018 or E7028 are recommended.
4. Torque: Secure the clip by tightening the bolt to 350 Nm.

XINGRAIL 9116/08/3

A compact solution for lighter-duty applications, such as service bay cranes or rail-mounted samplers, especially where rails are mounted on narrow girders. It provides a solid 55 kN of lateral resistance.

• Download 9116 Technical PDF

9116 Welded Rail Fixing Clips Installation:

1. Setup: Position the clip on the narrow girder flange.
2. Welding: Weld the three accessible sides using a 4mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or E7028.
4. Torque: Once cooled, install the upper component and torque the bolt to 125 Nm.

Technical Comparison: XINGRAIL 9 Series Models for Mining

Model	Lateral Resistance	Horizontal Adjustment	Best Use Case
9220/20/45	235 kN	20 mm	Rotary Car Dumpers, primary Stacker-Reclaimers.
9216/08/40	130 kN	8 mm	Train Positioners, Mill Cranes.
9120/15/38	120 kN	15 mm	Long runways prone to settlement.
9116/08/3	55 kN	8 mm	Service Cranes, auxiliary equipment.

Why Use Reinforced Crane Rail Pads?

In a mining environment, the Crane Rail Pad is not just for support; it’s a vital layer of protection.

1. Impact Absorption: A high-quality reinforced pad absorbs the brutal shock loads from ore dumping, preventing the energy from cracking the concrete foundation or fatiguing the steel support structure.
2. Load Distribution: The pad compensates for minor surface irregularities on the girder, ensuring the massive wheel loads are distributed evenly to prevent point loading, a primary cause of rail failure.
3. Seal Against Contamination: The pad creates a barrier between the rail and the soleplate, preventing abrasive dust and corrosive slurry from accumulating and causing fretting corrosion.

Installation & Maintenance Best Practices

The goal in a mining operation is to install a system that you can forget about. Correct installation is the key to achieving this long-term reliability.

• Welding Protocol: The clip base must be welded on three sides using a 5mm throat thickness fillet weld (4mm for the 9116).
• Electrode Selection: Always use low-hydrogen electrodes (AWS E7018 or E7028) to create a tough, ductile weld that can withstand high impacts without cracking.
• Torque Specifications: Applying the correct torque is essential to engage the self-locking mechanism. It is this mechanism that prevents the clip from loosening under constant vibration.
• Post-Weld Adjustment: Use the clip’s lateral adjustment to achieve a perfectly straight rail line before final tightening. This minimizes wheel and rail wear, extending the life of your equipment.

Global Rail Compatibility

Our heavy-duty crane rail fastening systems are designed to be compatible with the heavy-haul rail sections used in mining operations across the globe.

• European Standards: Compatible with DIN536 rails (e.g., A120, A150).
• North American Standards: Designed for heavy-duty AREA Railway Standard Track (e.g., 136RE, 141RE) used in North American mines.
• Australian Standards: Fits heavy Australian Standard (AS) profiles common in the Pilbara and other major mining regions.
• Asian & Regional: Fully compatible with China Standard ISO/CE tracks (QU100, QU120), and other regional standards.

Frequently Asked Questions (FAQ)

Q: How do these clips handle the abrasive dust?
A: The welded base eliminates the threads and gaps of bolted systems where dust accumulates. The rubber nose seals the critical area between the clip and rail, preventing abrasive particles from wearing down the components.

Q: Can a welded clip handle the impact of a car dumper?
A: Absolutely. The 9220 model, with its 235 kN of lateral resistance and self-locking design, is specifically engineered to withstand the extreme shock loads of rotary car dumping without failing or loosening.

Q: Will the system corrode in a wet processing environment?
A: All components are hot-dip galvanized for excellent corrosion resistance. The welded design further enhances longevity by removing crevices where corrosive slurry can collect.
