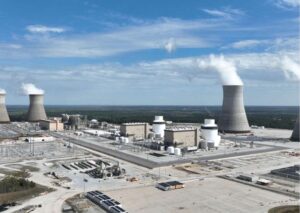

Nuclear Power Facilities: Radiation-Resistant Clips for Cranes

In the high-security, zero-tolerance environment of a nuclear power facility, every component must perform with absolute reliability. The polar crane inside the reactor containment building and the cask handling cranes in the spent fuel pool are among the most critical pieces of lifting equipment in the world. These cranes perform infrequent but essential tasks, such as removing the reactor vessel head or maneuvering spent fuel casks weighing over 125 tons. The crane rail system for these operations must meet the industry’s highest standards for safety, precision, and durability. Failure is not an option.

The Challenge: Nuclear-Grade Precision and Reliability

The engineering challenges for crane systems in nuclear facilities are unparalleled. They must operate flawlessly under unique and demanding conditions.

1. Zero-Failure Tolerance: During a refueling outage, the polar crane must lift and move extremely heavy components with sub-millimeter precision. Any rail misalignment could cause the crane to skew, leading to a catastrophic failure with severe safety and financial consequences.
2. Radiation Exposure: Materials used inside the containment building must be resistant to radiation, which can degrade polymers and affect the properties of certain metals over time. Elastomeric components like rubber noses must be specially formulated to withstand the long-term effects of a radioactive environment.
3. Inaccessibility and Maintenance: Once installed, many rail components are difficult, if not impossible, to access for maintenance. A rail fastening system must be a “fit and forget” solution, guaranteed to remain secure for the 40- to 60-year lifespan of the plant without needing retightening or replacement.

Conventional bolted rail clips are unsuitable for this application. A single loosened bolt could compromise a critical lift, and the organic materials in standard clips are not rated for radiation exposure. Nuclear engineers require a specialized crane rail system that is permanently stable, materially certified, and completely maintenance-free.

9 Series Welded Rail Clips: The Nuclear-Grade Solution

The 9 Series Heavy-Duty Welded Rail Clips are engineered to provide the absolute reliability required in nuclear power facilities. By using a forged steel base that is welded directly to the crane girder, this system creates a permanent, structural bond that eliminates the risk of loosening.

Key advantages for nuclear applications include:

• Permanent, Verifiable Stability: The welded connection provides a solid, maintenance-free foundation that ensures the rails remain perfectly aligned for the life of the plant. This is critical for the smooth, precise travel required for fuel handling and reactor maintenance.
• Radiation-Resistant Materials: While the steel components are inherently radiation-resistant, the elastomeric nose can be manufactured from specialized EPDM (ethylene propylene diene monomer) rubber. This material is formulated to resist degradation from radiation exposure, ensuring long-term performance inside containment.
• Seismic and Shock Load Certified: The robust, self-locking design is inherently resistant to the shock loads specified in seismic design criteria for nuclear facilities, ensuring the rail system remains secure during and after a seismic event.

Heavy-Duty 9 Series Welded Rail Clips Recommendation

Selecting the correct clip is a critical safety decision in a nuclear facility. The choice is dictated by the crane’s function and the strict quality assurance requirements of the industry.

XINGRAIL 9220/20/45

This is the definitive solution for Polar Cranes inside the reactor containment building and Cask Handling Cranes. With an immense 235 kN (24 tons) of lateral resistance, it is engineered to provide the highest level of stability for the heaviest and most sensitive lifts in the nuclear industry.

• Download 9220 Technical PDF

9220 Welded Rail Fixing Clips Installation:

1. Preparation: Surfaces must be prepared according to stringent nuclear QA protocols, ensuring they are perfectly clean and documented.
2. Welding: Weld the clip base on three sides (the two sides perpendicular to the rail and the back side). Do not weld the side closest to the rail. All welding must be performed by certified nuclear-grade welders.
3. Weld Spec: Use a 5mm throat thickness fillet weld. Utilize certified low-hydrogen electrodes like AWS E7018 or E7028, with full material traceability.
4. Torque: After the weld cools and passes all non-destructive examinations (NDE), assemble the upper clip with its radiation-resistant nose and tighten the bolt to 350 Nm using a calibrated torque wrench.

XINGRAIL 9216/08/40

A highly reliable choice for Turbine Hall Cranes and cranes in the auxiliary building. It provides a robust 130 kN (13.3 tons) of lateral resistance, ensuring stability and precision for critical but non-nuclear lifts like turbine maintenance.

• Download 9216 Technical PDF

9216 Welded Rail Fixing Clips Installation:

1. Positioning: Align the base plate relative to the rail foot, allowing for the clip’s 8mm of horizontal adjustment for precision alignment.
2. Welding: Weld the base on its three outer sides using a 5mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or an equivalent low-hydrogen rod.
4. Torque: After cooling and inspection, assemble the clip and tighten the bolt to 350 Nm.

XINGRAIL 9120/15/38

Nuclear plant buildings have massive foundations but can still experience micro-settlement over 60 years. The 9120 offers 15mm of lateral adjustment after welding, allowing engineers to micro-adjust rail alignment during planned outages to maintain perfect tolerances.

• Download 9120 Technical PDF

9120 Welded Rail Fixing Clips Installation:

1. Alignment: Place the weldable base to accommodate the full adjustment range for future fine-tuning.
2. Welding: Perform a 5mm throat thickness fillet weld on the three outer sides.
3. Electrodes: Low-hydrogen AWS E7018 or E7028 are required.
4. Torque: Secure the clip by tightening the bolt to 350 Nm.

XINGRAIL 9116/08/3

A compact and proven solution for Maintenance Workshop Cranes and hoists in non-critical areas. Its small footprint and 55 kN of lateral resistance are perfect for lighter-duty applications where reliability is still key.

• Download 9116 Technical PDF

9116 Welded Rail Fixing Clips Installation:

1. Setup: Position the clip on the narrow girder flange.
2. Welding: Weld the three accessible sides using a 4mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or E7028.
4. Torque: Once cooled, install the upper component and torque the bolt to 125 Nm.

Technical Comparison: XINGRAIL 9 Series Models for Nuclear Facilities

Model	Lateral Resistance	Horizontal Adjustment	Best Use Case
9220/20/45	235 kN	20 mm	Polar & Cask Handling Cranes
9216/08/40	130 kN	8 mm	Turbine Hall & Auxiliary Cranes
9120/15/38	120 kN	15 mm	Runways needing long-term alignment
9116/08/3	55 kN	8 mm	Maintenance Workshop Hoists

Why Use Reinforced Crane Rail Pads?

In a nuclear facility, the Crane Rail Pad is an integral part of the safety and precision of the lifting system.

1. Ensures Smooth Travel: The pad compensates for any minute imperfections on the girder surface, ensuring exceptionally smooth crane travel. This is vital to prevent any jarring or swinging of sensitive loads like fuel assemblies.
2. Electrical Isolation: The pad provides a degree of electrical insulation between the rail and the girder, which can be an important consideration in plant design.
3. Vibration Damping: It helps dampen any structural vibrations, isolating the critical crane and its load from the rest of the building.

Installation & Maintenance Best Practices

Installation of a crane rail system in a nuclear plant is governed by the strictest quality assurance protocols.

• Welding Protocol: All welding must conform to nuclear-grade standards (e.g., ASME NQA-1). This includes full material traceability, certified welders, and extensive non-destructive examination (NDE) of every weld.
• Material Certification: All components, especially the elastomeric nose for in-containment use, must come with material certifications verifying their suitability for a nuclear environment.
• Torque Verification: All bolts must be tightened to the specified torque using calibrated equipment, with the process documented and independently verified as part of the quality assurance record.
• No Maintenance: The primary maintenance practice is to select a system that requires no maintenance. The welded, self-locking design ensures that once installed and verified, the system is reliable for the life of the plant.

Global Rail Compatibility

Our heavy-duty crane rail fastening systems are designed to be compatible with the rail profiles used in nuclear power stations worldwide, adhering to global standards for safety and quality.

• European Standards: Compatible with DIN536 rails (e.g., A120, A150).
• North American Standards: Designed for heavy-duty ASCE and AREA rail sections as specified in nuclear plant designs.
• Asian & Regional: Fully compatible with China Standard ISO/CE tracks, India Standard Railway Tracks, and GOST Standard Tracks used in international nuclear projects.

Frequently Asked Questions (FAQ)

Q: Are these clips “nuclear-grade”?
A: The design is proven in critical applications globally. The steel components are standard high-quality forged steel. For nuclear use, they are supplied with the full material traceability and quality assurance documentation required by the nuclear industry. The elastomeric nose can be supplied in a certified radiation-resistant EPDM compound.

Q: How do welded clips meet seismic requirements?
A: The solid, welded connection and the self-locking nature of the clip provide superior resistance to the lateral and vertical forces generated during a seismic event compared to bolted systems, which can be prone to loosening.

Q: Can this system be used for retrofitting an older nuclear plant?
A: Yes. Upgrading from an older bolted system to a modern welded system is an excellent way to enhance the safety and reliability of aging crane infrastructure during a planned maintenance outage.
