Offshore Supply Bases: Guide to Crane Rail Stability & Efficiency

In the high-stakes world of offshore energy, the offshore supply base acts as the critical lifeline for platform operations. These logistics hubs work around the clock to load and unload Offshore Supply Vessels (OSVs) with everything from drilling pipes and heavy machinery to food and water. At the heart of this operation is the crane system. Whether it is a massive portal crane or a rail-mounted gantry, the stability of the lifting equipment determines the speed and safety of the turnaround.

Offshore supply bases face unique challenges compared to standard ports. The equipment often operates in exposed coastal environments, battling high winds, salt spray, and the dynamic stress of loading cargo onto moving vessels. The crane rail system must handle these extreme forces without faltering. A loose rail or a failed clip can halt logistics, delaying vital supplies to offshore rigs and costing operators thousands of dollars by the hour. To prevent this, you need a robust rail fastening solution that offers high lateral resistance and effective vibration damping.

9 Series Welded Clips: Securing the Supply Chain

Cranes at an offshore supply base generate immense horizontal forces. When a crane brakes suddenly or swings a heavy load of drill pipe, the lateral thrust on the rail is significant. Conventional bolted clips often struggle here. The constant vibration from heavy rolling loads can loosen nuts, while the marine environment accelerates corrosion in the threads.

For these demanding conditions, we recommend the 9 Series Heavy-Duty Welded Rail Clips. Unlike traditional friction-based systems, these clips feature a base that is welded directly to the steel girder or concrete soleplate. This creates a permanent, non-shifting foundation that ensures your cranes remain operational even during peak logistical surges.

Engineered for the Marine Environment

The 9 Series clips are forged for strength. In an offshore supply base, where salt air is a constant threat, the reduced number of moving parts in a welded system means fewer points of failure. The weld provides a sealed barrier against moisture ingress under the clip, protecting the structural integrity of the crane beam.

The Self-Locking Advantage

Precision is vital when lowering heavy equipment onto the swaying deck of a supply ship. The 9 Series utilizes a wedge-action, self-locking mechanism. As lateral forces push against the rail, the clip grips tighter, maintaining constant downward pressure. This prevents “rail snaking”—where the rail shifts side-to-side—ensuring the crane operator has predictable, smooth movement every time.

Heavy-Duty 9 Series Welded Rail Clips Recommendation

To maintain the efficiency of an offshore supply base, selecting the right clip for your specific crane tonnage is essential. Below are the top recommendations for port and supply base operations.

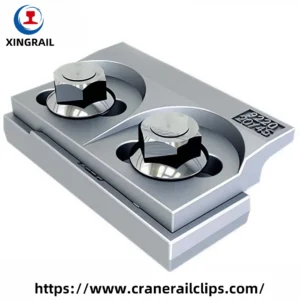

XINGRAIL 9220/20/45

This is the heavy hitter of the lineup. It is a high-capacity forged clamp designed to withstand extreme lateral resistance. It is the ideal choice for the primary quay cranes that handle the heaviest loads, such as subsea manifolds or large generators.

• 9220 Technical PDF

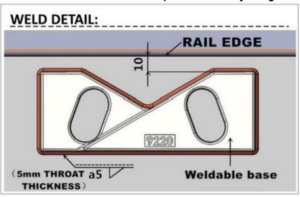

9220 Welded Rail Fixing Clips Installation:

Proper installation is key to longevity. Follow these steps to ensure maximum hold:

• Welding: Weld the clip base on all three sides, leaving the side closest and parallel to the rail unwelded. This prevents heat stress on the rail foot.
• Weld Size: Apply a 5mm throat thickness fillet weld.
• Electrodes: Use low-hydrogen electrodes (such as AWS E7018 or E7028) to ensure a crack-resistant weld in high-stress zones.
• Torque: Tighten the bolt to a torque of 350 Nm.

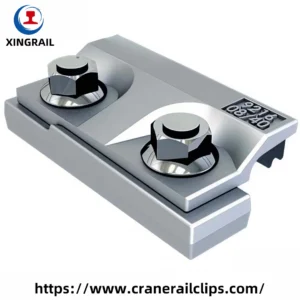

XINGRAIL 9216/08/40

This clip serves as a versatile workhorse for medium-to-heavy tracks. It is often used for automated stacking cranes in the storage yards of the supply base, where pipe and riser inventory is managed. It offers a secure, maintenance-free welded base that withstands repetitive cycling.

• 9216 Technical PDF

9216 Welded Rail Fixing Clips Installation:

• Welding: Weld around the base perimeter, excluding the side facing the rail.
• Weld Specs: Ensure a continuous fillet weld using standard weldable grade steel procedures.
• Adjustment: This unit allows for lateral adjustment to correct gauge width before final tightening.

XINGRAIL 9120/15/38

Operational flexibility is a major asset in a busy supply base. The 9120 series provides critical lateral adjustment even after welding. If the rail needs re-aligning due to settlement or wear, this clip allows for corrections without cutting the weld, preserving the integrity of the crane rail system.

• 9120 Technical PDF

9120 Welded Rail Fixing Clips Installation:

• Welding: Weld all around the clip base, skipping the side closest to the rail.
• Weld Size: Use a 5mm throat thickness fillet weld.
• Electrodes: Use low hydrogen electrodes like AWS E7018 or E7028.
• Material Note: The base is weldable grade steel. Consult XINGRAIL if your specific project requires a continuous weld pattern different from the standard.
• Torque: Tighten to 350 Nm.

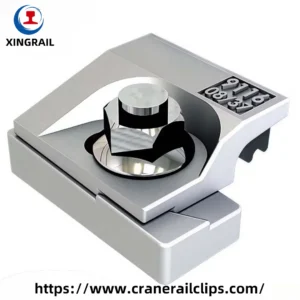

XINGRAIL 9116/08/3

Space can be tight on older quays or specialized jetties. The 9116 is a compact solution designed for narrow girders. Despite its size, it offers robust positioning for high-frequency duty cycles, making it perfect for lighter auxiliary cranes.

• 9116 Technical PDF

9116 Welded Rail Fixing Clips Installation:

• Welding: Weld the base on three sides (excluding the rail side).
• Weld Size: Apply a 4mm throat thickness fillet weld.
• Electrodes: Use low hydrogen electrodes (AWS E7018 or E7028).
• Torque: Tighten to 125 Nm.

Technical Comparison Table

Choosing the right clip depends on your specific load requirements and beam dimensions.

Model	Base Material	Surface Treatment	Lateral Force Resistance	Horizontal Adjustment	Applications	Special Features
9220/20/45	Q355/Q235 Steel	Galvanized	235 kN (24 tons)	20 mm	Supply bases, heavy quay cranes	Vulcanized rubber tongue, no beam holes needed
9216/08/40	Q355/Q235 Steel	Galvanized	130 kN (13.3 tons)	8 mm	Storage yards, automated cranes	Simplified installation, versatile rail support
9120/15/38	Q355/Q235 Steel	Galvanized	120 kN (12.2 tons)	15 mm	Supply bases, gantry cranes	Noise reduction, direct foundation welding
9116/08/3	Q355/Q235 Steel	Galvanized	55 kN	8 mm	Narrow jetties, auxiliary cranes	Compact design, noise reduction

The Role of Crane Rail Pads in Supply Base Systems

While the clips hold the rail in place, the Crane Rail Pad is what protects the system from self-destruction. In an offshore supply base, cranes are constantly lifting dynamic loads. This creates shockwaves that travel down through the rail.

Without a pad, steel-on-steel contact between the rail and the girder leads to fretting and wear. In a salty maritime environment, this wear creates pockets where corrosion sets in rapidly.

• Vibration Damping: High-quality reinforced pads absorb the shock from rapid container movements and heavy lifts, protecting the concrete or steel foundation from cracking.
• Load Uniformity: No quay surface is perfectly flat. The pad acts as a compensator, distributing vertical wheel loads evenly. This prevents “point loading,” which can snap rails under heavy stress.
• Corrosion Defense: By isolating the rail from the girder, the pad prevents fretting corrosion—a critical feature for extending the life of tracks near the ocean.

Maintenance and Installation Efficiency

Time is money in logistics. You cannot afford to shut down a berth for weeks to fix a track.

• Ease of Installation: The 9 Series allows for lateral adjustment after welding. This means your installation team can weld the bases quickly and then fine-tune the rail alignment perfectly before tightening the bolts.
• Long-Term Reliability: These systems are “fit and forget.” Once installed, the self-locking mechanism and corrosion-resistant galvanization mean they require virtually no maintenance. This keeps your berths open and your supply vessels moving.

Recommended Rail Tracks for Offshore Supply Bases

The rail profile you choose must match the wheels of your crane and the load rating of your quay. Supply bases often use heavy-duty profiles to handle the gross tonnage of loaded gantry cranes.

Standard	Recommended Track Profile
European / DIN	DIN536 Standard Rails (e.g., A75, A100, A120) are the industry standard for wide-base stability and robust performance.
North American	AREA Railway Standard Track profiles are frequently used in American supply bases for heavy-haul compatibility.
British / Commonwealth	BS Railway Tracks and Australian Standard AUS Tracks provide durable options for regional compliance in the UK and APAC regions.
Asian / Regional	China Standard ISO/CE Approved Tracks and India Standard Tracks offer cost-effective, reliable performance for global projects.
Specialized Standards	GOST Standard Tracks and SABS Standard Rails are available for specific engineering requirements in Russia and South Africa.
