STS Crane Rail Fastening Solution

In modern container terminals, Ship-to-Shore (STS) cranes are the workhorses of ship-to-shore logistics. With increasing vessel sizes and higher operational speeds, rail systems are subjected to unprecedented mechanical stress. To ensure 24/7 port availability, a rail fastening solution that balances extreme lateral resistance with dynamic vibration damping is essential.

9 Series Welded Clips High Lateral Resistance

STS cranes generate massive horizontal lateral forces during the rapid acceleration and braking of the trolley and gantry. Conventional bolted fasteners often fail under these repetitive cycles, leading to rail misalignment.

• Forged Strength & Secure Locking:
  We recommend the 9 Series Heavy-Duty Welded Rail Clips. The clip base is welded directly to the steel girder or soleplate, creating a robust mechanical bond that cannot be shaken loose by heavy duty cycles.
• Self-Locking Mechanism:
  The 9 Series design utilizes a wedge-action self-locking feature. As lateral forces increase, the clip maintains a constant downward pressure on the rail flange, preventing “rail snaking” and ensuring precise crane positioning.

Heavy-Duty 9 Series Welded Rail Clips Recommend

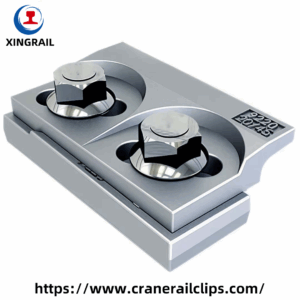

• XINGRAIL 9220/20/45: A high-capacity forged clamp designed for extreme lateral resistance during rapid crane braking.

9220 Technical PDF

9220 Welded Crane Rail Forged Fastening Clamp XINGRAIL 92202045

9220  Installation Instructions:

Weld the clip base on all sides, except for the side closest and parallel to the rail, using a 5mm throat thickness fillet weld. Use low-hydrogen electrodes such as AWS E7018 or E7028 for the best results. The clip base is made from weldable-grade steel, ensuring a secure and durable installation. If a continuous weld around the clip base is required, this can be accommodated—please reach out to XINGRAIL for specific guidance.

Tightening Torque: 350 Nm

For detailed installation instructions or additional support, feel free to contact XINGRAIL directly.

• XINGRAIL 9216/08/40: Ideal for medium-to-heavy tracks, offering a secure, maintenance-free welded base.

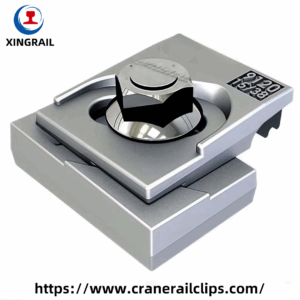

• XINGRAIL 9120/15/38: Provides critical lateral adjustment after welding to ensure perfect rail alignment.

• XINGRAIL 9116/08/38: A compact solution for precise positioning in high-frequency duty cycles.

Key Features Across All Models:

• Material: Forged Q355 or Q235 steel, with international equivalents provided for clarity:
  • Q355: ASTM A572 Grade 50, ISO S355
  • Q235: ASTM A36, ISO S235
• Surface Treatment: Galvanized for durability in harsh outdoor environments.
• Installation: Welded base for stability, no need for pre-drilled holes in steel beams.
• Vibration Damping: Vulcanized rubber tongue reduces noise and absorbs vibrations.
• Applications: Designed for heavy-duty environments like ports, terminals, and mining.

Dynamic Stress Distribution: Performance Crane Rail Pads

While clips provide lateral stability, Crane Rail Pads are the unsung heroes of vertical load management and shock absorption.

• Vibration Damping:
  Our reinforced rail pads are positioned between the rail and the support structure. They absorb high-frequency vibrations generated during operation, protecting the entire crane structure from fatigue damage.
• Load Uniformity:
  The pad compensates for minor irregularities in the rail or girder surface. By distributing the vertical load evenly, it eliminates “point loading,” which significantly reduces the risk of rail fracture and baseplate wear.
• Fretting Corrosion Prevention:
  By eliminating direct steel-on-steel contact, the rail pad prevents wear and corrosion at the interface, extending the service life of the track system.

Designed for High-Altitude Maintenance Efficiency

Maintenance on STS crane rails often occurs at significant heights, making accessibility difficult and costly.

• Ease of Installation:
  The 9 Series clips allow for lateral adjustment after the base has been welded. This ensures perfect rail alignment with minimal effort during the installation phase.
• Long-Term Reliability:
  Built for harsh maritime environments, our solution is engineered to be virtually maintenance-free. This reduces the need for frequent inspections and minimizes downtime for busy terminals.
