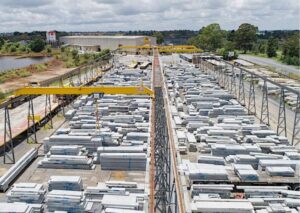

Precast Concrete Yards: Rail Systems for Cranes

In the fast-paced world of precast concrete manufacturing, efficiency and safety are built on a foundation of steel. The gantry cranes that dominate the skyline of a precast yard are the workhorses of the operation, lifting and transporting everything from massive bridge girders and building panels to heavy culverts and pipes. The crane rail system that supports this constant, heavy-duty cycle must be exceptionally tough. It must endure not only immense loads but also the harsh, abrasive environment of an outdoor industrial yard. For a precast operation, a high-performance, heavy-duty crane rail fastening system is a critical investment in productivity and operational safety.

The Challenge: High-Frequency Cycles and Heavy Impact

Precast concrete yards are relentless environments. Cranes operate in a high-frequency cycle of lifting, traveling, and setting down extremely heavy, often awkward loads. This process puts enormous stress on the crane rail infrastructure.

1. Extreme Repetitive Loading: A gantry crane in a precast yard might perform hundreds of heavy lifts every single day. This constant cycle of loading and unloading creates powerful dynamic forces and vibrations that attack the rail fasteners.
2. High-Impact Setting: Gently placing a 50-ton concrete segment is not always possible. The impact from setting down heavy, hard objects sends powerful shockwaves through the rail system, which can cause conventional fasteners to fail.
3. Vibration and Loosening: The constant movement of cranes and yard vehicles creates a background vibration that is the primary enemy of traditional bolted clips. Over time, nuts can work themselves loose, leading to rail misalignment, which causes accelerated wear on crane wheels and can become a serious safety hazard.

Conventional bolted rail clips are a frequent point of failure in this demanding setting. The combination of high-cycle vibration and heavy impacts leads to loosening, and the abrasive concrete dust makes maintenance difficult. A misaligned rail can lead to costly downtime and, more importantly, create an unsafe lifting condition. To ensure maximum production and a safe yard, managers need a precast yard crane rail system that offers permanent stability and is built to withstand the punishing daily grind.

9 Series Welded Rail Clips: The Robust Precast Solution

The 9 Series Heavy-Duty Welded Rail Clips are engineered to provide the unwavering reliability that precast concrete operations require. By utilizing a forged steel base that is welded directly to the crane girder or concrete-embedded soleplate, this system eliminates the threaded bolts that are the most common point of failure.

Key advantages for precast yards include:

• Permanent Welded Stability: The welded connection creates a solid, structural bond that is impervious to the high-cycle vibrations and heavy impacts of a precast yard. It will not loosen over time.
• Self-Locking Mechanism: The unique wedge-action design ensures the rail remains tightly clamped. As the crane brakes or accelerates with a heavy load, the clip’s grip reinforces itself, preventing rail creep and misalignment.
• Maintenance-Free Operation: A welded system is a “fit and forget” solution. It eliminates the need for periodic inspection and retightening of bolts, reducing maintenance costs and increasing crane availability.

Heavy-Duty 9 Series Welded Rail Clips Recommendation

Selecting the correct clip is crucial for the productivity and safety of your precast operation. The choice depends on the capacity of your gantry cranes and the types of products you manufacture.

XINGRAIL 9220/20/45

This is the top-tier solution for the main Gantry Cranes handling large structural components like bridge segments and double-T beams. With an immense 235 kN (24 tons) of lateral resistance, it is designed to handle the heaviest and most frequent lifts in the yard.

• Download 9220 Technical PDF

9220 Welded Rail Fixing Clips Installation:

1. Preparation: The steel soleplate or girder must be meticulously cleaned of all dust, rust, and moisture.
2. Welding: Weld the clip base on three sides (the two sides perpendicular to the rail and the back side). Do not weld the side closest to the rail to avoid heat distortion.
3. Weld Spec: Use a 5mm throat thickness fillet weld. Utilize low-hydrogen electrodes like AWS E7018 or E7028 to create a tough, ductile weld that can withstand high-impact loads.
4. Torque: After the weld cools completely, assemble the upper clip and tighten the bolt to a final torque of 350 Nm.

XINGRAIL 9216/08/40

A robust and reliable choice for Cranes in the casting and finishing areas, handling wall panels, culverts, and pipes. It provides 130 kN (13.3 tons) of lateral resistance, ensuring stability for the high-frequency, medium-to-heavy lifts that are common in these zones.

• Download 9216 Technical PDF

9216 Welded Rail Fixing Clips Installation:

1. Positioning: Align the base plate relative to the rail foot, allowing for the clip’s 8mm of horizontal adjustment.
2. Welding: Weld the base on its three outer sides using a 5mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or an equivalent low-hydrogen rod.
4. Torque: After cooling, assemble the clip and tighten the bolt to 350 Nm.

XINGRAIL 9120/15/38

Long gantry runways in a yard can experience ground settlement. The 9120 offers 15mm of lateral adjustment after welding, allowing maintenance teams to easily realign tracks to compensate for shifts in the foundation without costly and disruptive hot work.

• Download 9120 Technical PDF

9120 Welded Rail Fixing Clips Installation:

1. Alignment: Place the weldable base to accommodate the full adjustment range needed.
2. Welding: Perform a 5mm throat thickness fillet weld on the three outer sides.
3. Electrodes: Low-hydrogen AWS E7018 or E7028 are recommended.
4. Torque: Secure the clip by tightening the bolt to 350 Nm.

XINGRAIL 9116/08/3

A compact and economical solution for overhead cranes inside the casting shed or for smaller yard cranes moving rebar cages and forms. Its smaller footprint and 55 kN of lateral resistance are perfect for lighter-duty, high-cycle applications.

• Download 9116 Technical PDF

9116 Welded Rail Fixing Clips Installation:

1. Setup: Position the clip on the narrow girder or soleplate.
2. Welding: Weld the three accessible sides using a 4mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or E7028.
4. Torque: Once cooled, install the upper component and torque the bolt to 125 Nm.

Technical Comparison: XINGRAIL 9 Series Models for Precast Yards

Model	Lateral Resistance	Horizontal Adjustment	Best Use Case
9220/20/45	235 kN	20 mm	Main Gantry Cranes (Bridge Girders)
9216/08/40	130 kN	8 mm	Casting & Finishing Area Cranes
9120/15/38	120 kN	15 mm	Long runways on unstable ground
9116/08/3	55 kN	8 mm	Indoor Cranes & Form Handling

Why Use Reinforced Crane Rail Pads?

In the high-impact, high-vibration environment of a precast yard, the Crane Rail Pad is a critical element for system longevity.

1. Impact Absorption: The pad acts as a crucial shock absorber, cushioning the severe impacts from lifting and setting down heavy concrete segments. This protects the welds from fatigue and the concrete foundation from cracking.
2. Abrasion Barrier: It creates a seal between the rail and the soleplate, preventing abrasive concrete dust and grit from being trapped and grinding away the steel surfaces through fretting.
3. Load Distribution: The pad helps distribute the immense wheel loads from heavy segments evenly across the concrete sleeper or girder, preventing localized stress and potential failure.

Installation & Maintenance Best Practices

A precast yard’s profitability is tied to its uptime. A proper rail system installation is a “fit and forget” investment that maximizes crane availability.

• Welding Protocol: The clip base must be welded on three sides using a 5mm throat thickness fillet weld (4mm for the 9116).
• Electrode Selection: Always use low-hydrogen electrodes (AWS E7018 or E7028) to create a tough, ductile weld that can withstand constant impacts and outdoor temperature swings.
• Torque Specifications: Applying the correct torque is essential to engage the self-locking mechanism that prevents the clip from loosening under vibration.
• Thorough Cleaning: Meticulous cleaning of the soleplate before welding is critical. Any concrete dust or moisture left behind can compromise the quality and strength of the weld.

Global Rail Compatibility

Our heavy-duty crane rail fastening systems are designed to be compatible with the rail sections used in precast and construction facilities around the world.

• European Standards: Compatible with DIN536 rails (e.g., A75, A100, A120), common in yards with European-made gantry cranes.
• North American Standards: Designed for heavy-duty ASCE and AREA rail sections.
• Asian & Regional: Fully compatible with China Standard ISO/CE tracks, India Standard Railway Tracks, and GOST Standard Tracks.

Frequently Asked Questions (FAQ)

Q: How do these clips handle the constant vibration in a precast yard?
A: The self-locking wedge design is specifically engineered to resist loosening from vibration. Unlike bolted clips that need regular retightening, a welded system remains permanently secure.

Q: Will the constant shock of lifting heavy segments damage the weld?
A: No. When installed correctly with low-hydrogen electrodes and paired with a crane rail pad to absorb impact, the ductile weld is designed to handle the repeated shock loads of a precast yard for decades.

Q: Can I adjust the rail if our yard foundation settles over time?
A: Yes. The 9120 Series is specifically recommended for this situation. Its 15mm adjustment range allows you to realign the rail laterally without having to cut and re-weld the bases.
