Rocket Assembly Facilities: Precision Rail Systems for Cranes

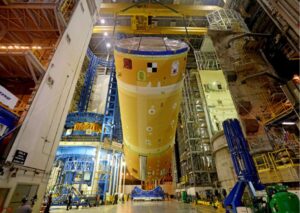

In the high-stakes world of aerospace and rocket assembly, precision is everything. Inside towering Vertical Assembly Buildings (VABs), massive overhead cranes perform the delicate task of lifting and mating multi-billion-dollar rocket stages, sensitive satellite payloads, and solid rocket boosters. These are not just heavy lifts; they are painstakingly slow, high-consequence maneuvers where a few millimeters of deviation can be catastrophic. The crane rail system that supports this vertical ballet is the unseen foundation of the entire launch campaign. It must guarantee absolute stability and perfect alignment, ensuring the flawless assembly of humanity’s most advanced machines.

The Challenge: Absolute Precision for High-Value Assets

The environment of a rocket assembly facility is unlike any other. It combines the scale of heavy industry with the clean-room precision of a laboratory. The crane systems here face a unique set of demands.

1. Sub-Millimeter Precision: When stacking a rocket stage weighing hundreds of tons onto another, the cranes must travel in perfect unison with zero deviation. Any “crabbing” or skewing of the crane, often caused by a misaligned rail, can lead to component damage, costly delays, and mission failure.
2. Zero-Tolerance for Load Sway: The crane runway must be perfectly smooth and aligned to prevent any sudden movements that could cause a sensitive payload or a fully-fueled upper stage to sway.
3. Long-Term Stability: These facilities are built to last for decades. The crane rail system must remain perfectly aligned over its entire service life, without the need for frequent maintenance or re-alignment, which would disrupt assembly operations.

Conventional bolted rail clips are a significant risk in this environment. The ambient vibration from building systems or even minor seismic tremors can cause bolts to loosen over time, creating a hidden alignment issue that could become a major problem during a critical lift. Aerospace engineers require a precision crane rail system that offers permanent, locked-in alignment and is completely maintenance-free.

9 Series Welded Rail Clips: The Precision-Engineered Solution

The 9 Series Heavy-Duty Welded Rail Clips are engineered to provide the “fit and forget” reliability demanded by the aerospace industry. By welding the clip base directly to the crane girder, this system creates a permanent, structural bond that eliminates any possibility of loosening and guarantees long-term alignment.

Key advantages for rocket assembly facilities include:

• Permanent Precision Alignment: The welded base ensures the crane rails remain perfectly straight and parallel, which is the foundation for smooth, precise, and synchronized crane travel required for stacking rocket stages.
• Self-Locking Mechanism: The unique wedge-action design holds the rail under constant, high-pressure contact. This prevents any vertical or lateral rail movement, even when performing tandem lifts of the heaviest components.
• Vibration Damping: The integrated vulcanized rubber nose absorbs minor vibrations and ensures smooth, low-noise crane travel, contributing to the controlled, clean-room environment of the assembly building.

Heavy-Duty 9 Series Welded Rail Clips Recommendation

Selecting the right clip is a mission-critical decision in an aerospace facility, governed by the highest standards of engineering and quality control.

XINGRAIL 9220/20/45

This is the ultimate solution for the main High Bay Cranes in Vertical Assembly Buildings. With an immense 235 kN (24 tons) of lateral resistance, it is engineered to provide maximum stability for tandem lifts of core stages and heavy boosters, where precision and load control are paramount.

• Download 9220 Technical PDF

9220 Welded Rail Fixing Clips Installation:

1. Preparation: Girder surfaces must be prepared to aerospace standards, ensuring they are perfectly clean and free of any contaminants.
2. Welding: Weld the clip base on three sides (the two sides perpendicular to the rail and the back side), following a strict, pre-approved welding procedure specification (WPS). Do not weld the side closest to the rail.
3. Weld Spec: Use a 5mm throat thickness fillet weld. Utilize certified low-hydrogen electrodes like AWS E7018 with full material traceability. All welds must undergo rigorous non-destructive examination (NDE).
4. Torque: After the weld cools and passes all quality checks, assemble the upper clip and tighten the bolt to 350 Nm using a calibrated torque wrench, with the process documented.

XINGRAIL 9216/08/40

An excellent choice for cranes in Payload Processing Facilities and fairing assembly areas. It provides a robust 130 kN (13.3 tons) of lateral resistance, ensuring stability and precision for handling delicate, high-value satellites and spacecraft.

• Download 9216 Technical PDF

9216 Welded Rail Fixing Clips Installation:

1. Positioning: Align the base plate relative to the rail foot. The clip’s 8mm of horizontal adjustment is used for the final laser-guided alignment.
2. Welding: Weld the base on its three outer sides using a 5mm throat thickness fillet weld.
3. Electrodes: Use certified AWS E7018 or equivalent low-hydrogen rods.
4. Torque: After cooling and inspection, assemble the clip and tighten the bolt to 350 Nm.

XINGRAIL 9120/15/38

Vertical Assembly Buildings are massive structures that can experience micro-settlement over their lifespan. The 9120 offers 15mm of lateral adjustment after welding, allowing engineers to micro-adjust the crane rail alignment during maintenance periods to maintain perfect tolerances.

• Download 9120 Technical PDF

9120 Welded Rail Fixing Clips Installation:

1. Alignment: Place the weldable base to accommodate the full adjustment range for future fine-tuning.
2. Welding: Perform a 5mm throat thickness fillet weld on the three outer sides.
3. Electrodes: Low-hydrogen AWS E7018 or E7028 are required.
4. Torque: Secure the clip by tightening the bolt to 350 Nm.

XINGRAIL 9116/08/3

A compact, reliable solution for Component Workshops and smaller clean-room hoists handling avionics and other sensitive hardware. Its small footprint and 55 kN of lateral resistance are ideal for lighter-duty precision lifts.

• Download 9116 Technical PDF

9116 Welded Rail Fixing Clips Installation:

1. Setup: Position the clip on the narrow girder flange.
2. Welding: Weld the three accessible sides using a 4mm throat thickness fillet weld.
3. Electrodes: Use certified AWS E7018 or E7028.
4. Torque: Once cooled, install the upper component and torque the bolt to 125 Nm.

Technical Comparison: XINGRAIL 9 Series Models for Aerospace

Model	Lateral Resistance	Horizontal Adjustment	Best Use Case
9220/20/45	235 kN	20 mm	Main VAB High Bay Cranes (Stacking)
9216/08/40	130 kN	8 mm	Payload & Fairing Handling Cranes
9120/15/38	120 kN	15 mm	Runways needing long-term alignment
9116/08/3	55 kN	8 mm	Component & Avionics Workshop Hoists

hy Use Reinforced Crane Rail Pads?

In a precision environment like a VAB, the Crane Rail Pad is essential for achieving the required level of performance.

1. Ensures Ultra-Smooth Travel: The pad compensates for any microscopic imperfections on the girder surface, eliminating hard spots and ensuring the crane moves with exceptional smoothness. This is vital to prevent any jarring of sensitive rocket components.
2. Vibration Isolation: It isolates the crane and its precious cargo from any building vibrations, further contributing to a stable and controlled lift.
3. Load Distribution: It helps distribute the immense static loads of parked cranes evenly along the building’s support structure, reducing long-term stress.

Installation & Maintenance Best Practices

The installation of a crane rail system in a rocket factory is governed by the highest levels of quality control.

• Laser Alignment: Before and after welding, the entire runway must be surveyed with lasers to ensure it meets the stringent straightness and parallelism tolerances required for tandem lifts.
• Quality Assurance: All material must have full traceability (MTRs), and every step of the installation, from welding to torqueing, must be documented and verified by a quality assurance team.
• Cleanliness: Installation must be performed in a clean-room-like manner, with strict controls to prevent contamination of the facility with foreign object debris (FOD).
• No Maintenance: The goal is a zero-maintenance system. The welded, self-locking design is chosen specifically because it requires no periodic inspection or retightening for the life of the facility.

Global Rail Compatibility

Our heavy-duty crane rail fastening systems are designed to be compatible with the rail profiles used in aerospace facilities around the world.

• European Standards: Compatible with heavy DIN536 rails (e.g., A120, A150).
• North American Standards: Designed for heavy-duty ASCE and AREA rail sections specified in NASA and commercial spaceport designs.
• Asian & Regional: Fully compatible with China Standard ISO/CE tracks, India Standard Railway Tracks, and GOST Standard Tracks used in global space programs.

Frequently Asked Questions (FAQ)

Q: Why is a welded clip better than a high-strength bolted clip for this application?
A: Long-term reliability. While a bolted clip may be tight on day one, a welded clip is guaranteed to be just as tight on day 10,000. For mission-critical infrastructure that cannot be easily maintained, the permanence of a weld is the only way to eliminate the risk of loosening.

Q: How do these clips guarantee the precision needed for mating rocket stages?
A: By providing a perfectly stable and aligned foundation. The clips lock the rails in place, ensuring they are perfectly parallel. This forces the cranes to travel straight, which is the key to precise, synchronized lifting and positioning.

Q: Can this system be used in a clean room environment?
A: Yes. The installation can be performed under strict cleanliness protocols. Once installed, the maintenance-free design generates no particulate matter, making it ideal for clean rooms where rocket payloads are prepared.
