Satellite Manufacturing Plants: Ultra-Precise Rail Solutions for Cranes

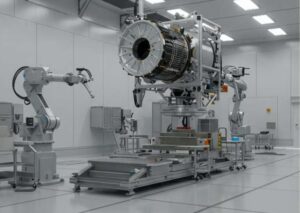

In the world of satellite manufacturing, the assembly environment is as critical as the technology itself. Inside vast, stringently controlled cleanrooms, overhead cranes perform the slow, deliberate work of lifting and positioning multi-million-dollar spacecraft, sensitive optical instruments, and delicate solar arrays. These are not just lifts; they are ultra-precise maneuvers where a fractional deviation can be catastrophic. The crane rail system in a satellite cleanroom is the invisible foundation for this precision, and it must guarantee absolute stability, perfect alignment, and zero particulate generation.

The Challenge: Cleanliness, Precision, and Zero Failure

Satellite manufacturing facilities present a unique combination of challenges, blending the precision of a laboratory with the scale of heavy assembly. The crane infrastructure must meet an extraordinary set of demands.

1. Extreme Precision and Smoothness: When mating a payload to a satellite bus or installing a sensitive antenna, the crane must travel with flawless fluidity. Any juddering, vibration, or “crabbing” caused by a misaligned rail can damage irreplaceable components and jeopardize the mission.
2. Zero Particulate Generation: The cleanroom environment has a zero-tolerance policy for foreign object debris (FOD). A crane rail system cannot generate dust from wear, flaking paint, or corrosion. Any maintenance that creates particles, such as grinding or re-drilling, is forbidden.
3. Long-Term, Maintenance-Free Stability: These facilities are designed for decades of use. The crane rail system must be installed once and trusted to remain perfectly aligned for its entire service life, as maintenance opportunities are rare and disruptive.

Traditional bolted rail clips are a non-starter in this environment. They can loosen over time, creating alignment issues, and their joints can fret and generate particulates. Aerospace engineers need an ultra-precise crane rail solution that is permanently stable, inherently clean, and completely maintenance-free.

9 Series Welded Rail Clips: The Cleanroom-Ready Solution

The 9 Series Heavy-Duty Welded Rail Clips are engineered to provide the absolute reliability and cleanliness required for satellite manufacturing. By welding the clip base directly to the crane girder, this system creates a permanent, monolithic structure that eliminates the loosening and particulate generation associated with bolted systems.

Key advantages for satellite cleanrooms include:

• Permanent, Sub-Millimeter Alignment: The welded connection ensures the crane rails remain perfectly parallel, which is the basis for the exceptionally smooth, synchronized crane travel needed for handling sensitive spacecraft.
• Zero Particulate Design: The design has no moving parts that can wear or fret. The vulcanized rubber nose securely dampens vibration without generating dust, helping maintain the integrity of the cleanroom environment.
• Maintenance-Free Performance: A welded system is a true “fit and forget” solution. Once installed and certified, it requires no periodic inspection or retightening, eliminating the risk of FOD contamination from maintenance activities.

Heavy-Duty 9 Series Welded Rail Clips Recommendation

Selecting the correct clip is a mission-critical decision in a satellite manufacturing plant, governed by the highest standards of quality and cleanliness.

XINGRAIL 9216/08/40

This is the ideal choice for the main High Bay Cleanroom Cranes used for spacecraft integration and testing. It provides a robust 130 kN (13.3 tons) of lateral resistance, ensuring the stability and precision needed to handle delicate, fully-integrated satellites and large structural components with absolute control.

• Download 9216 Technical PDF

9216 Welded Rail Fixing Clips Installation:

1. Preparation: Girder surfaces must be prepared to ISO 14644 cleanroom standards, using lint-free wipes and approved solvents to ensure they are perfectly clean.
2. Welding: Weld the clip base on three sides using a 5mm throat thickness fillet weld. This must be done under strict contamination control, often using a mobile clean tent around the weld area. Do not weld the side closest to the rail.
3. Weld Spec: Use certified low-hydrogen electrodes like AWS E7018 with full material traceability. All welds must undergo rigorous non-destructive examination (NDE) and cleaning post-weld.
4. Torque: After the weld cools and passes all quality checks, assemble the upper clip and tighten the bolt to 350 Nm using a calibrated, non-shedding torque wrench.

XINGRAIL 9120/15/38

For the largest cleanrooms where even massive foundations can experience micro-settlement, the 9120 offers 15mm of lateral adjustment after welding. This allows engineers to micro-adjust the rail alignment during rare service intervals to maintain perfect tolerances for the life of the facility.

• Download 9120 Technical PDF

9120 Welded Rail Fixing Clips Installation:

1. Alignment: Place the weldable base to accommodate the full adjustment range, ensuring future fine-tuning is possible.
2. Welding: Perform a 5mm throat thickness fillet weld on the three outer sides under cleanroom protocols.
3. Electrodes: Certified low-hydrogen AWS E7018 or E7028 are required.
4. Torque: Secure the clip by tightening the bolt to 350 Nm and document the process.

XINGRAIL 9116/08/3

A compact, ultra-reliable solution for smaller cranes and hoists in Sub-Assembly Cleanrooms and Thermal Vacuum Chamber (TVAC) preparation areas. Its small footprint and 55 kN of lateral resistance are ideal for precise lifts of delicate instruments and electronic payloads.

• Download 9116 Technical PDF

9116 Welded Rail Fixing Clips Installation:

1. Setup: Position the clip on the narrow girder flange.
2. Welding: Weld the three accessible sides using a 4mm throat thickness fillet weld, following strict FOD and contamination controls.
3. Electrodes: Use certified AWS E7018 or E7028.
4. Torque: Once cooled and cleaned, install the upper component and torque the bolt to 125 Nm.

Technical Comparison: XINGRAIL 9 Series Models for Satellite Plants

Why Use Reinforced Crane Rail Pads?

In the ultra-precise environment of a satellite cleanroom, the Crane Rail Pad is a critical component for achieving perfect performance.

1. Enables Flawless Motion: The pad compensates for microscopic surface variations on the girder, ensuring the crane moves with exceptional smoothness and no vibration, which is vital when handling sensitive optics and electronics.
2. Vibration Isolation: It acts as a damper, isolating the crane and its priceless cargo from any ambient building vibrations, ensuring a completely stable lifting platform.
3. Cleanliness: The pad seals the gap between the rail and the girder, preventing it from becoming a collection point for any potential micro-particulates.

Installation & Maintenance Best Practices

The installation of a crane rail system in a satellite cleanroom is performed under the most stringent quality and cleanliness protocols.

• Contamination Control: All installation work must be performed under strict cleanroom protocols (ISO 14644), often within a temporary mobile clean enclosure to contain all welding fumes and debris.
• Laser Alignment: Before, during, and after welding, the runway must be continuously surveyed by laser trackers to ensure it meets the sub-millimeter straightness and parallelism tolerances required.
• Total Quality Assurance: Every component must have full material traceability. Every weld must be inspected and certified. Every torque value must be recorded. The entire process is documented for the permanent quality record of the facility.
• Zero-Maintenance Design: The system is chosen because it requires absolutely no maintenance. The philosophy is to build it perfectly once, so it never has to be touched again, thereby eliminating the risk of future contamination.

Global Rail Compatibility

Our heavy-duty crane rail fastening systems are designed to be compatible with the rail profiles used in high-tech aerospace and satellite manufacturing facilities around the world.

• European Standards: Compatible with heavy DIN536 rails (e.g., A75, A100).
• North American Standards: Designed for heavy-duty ASCE and AREA rail sections as specified in cleanroom designs for NASA and commercial aerospace contractors.
• Asian & Regional: Fully compatible with rail profiles used in the rapidly growing space programs across Asia and other regions.

Frequently Asked Questions (FAQ)

Q: Why is a welded system cleaner than a bolted system?
A: A welded system has no mechanical joints at the base that can move, fret, or wear, which are all sources of particulate generation. Once welded and coated, it is a single, solid piece, making it inherently cleaner over its lifetime.

Q: How do these clips guarantee the precision needed for satellite assembly?
A: By creating a perfectly stable and parallel runway. The clips lock the rails into a precise alignment that does not change over time. This forces the crane to travel perfectly straight, which is the foundation for precise, repeatable positioning of sensitive components.

Q: How is welding performed inside a finished cleanroom?
A: It is done with extreme care, typically using a portable soft-wall cleanroom enclosure with its own HEPA filtration system built around the specific area being welded. This contains 100% of the fumes and debris from the process.
