Shipbuilding Yards: Rail Systems for Massive Gantry Cranes

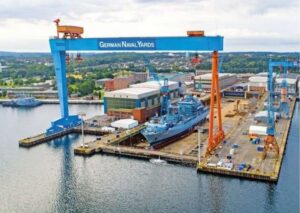

In a modern shipbuilding yard, the skyline is dominated by colossal gantry cranes. These giants, often named “Goliath” cranes, are the workhorses of ship assembly, capable of lifting and positioning entire super-blocks weighing over 1,500 tons. The crane rail system that supports these behemoths is a critical piece of infrastructure. It must handle unimaginable loads while maintaining millimeter-level precision and resisting the harsh, corrosive marine environment. As vessel sizes increase and modular construction techniques advance, the demand for high-performance shipyard crane rail fastening has become essential for safety, productivity, and the longevity of the yard itself.

The Challenge: Extreme Loads and Environmental Attack

Shipyard gantry cranes are unique. They are not just lifting immense weights; they are subjected to a combination of forces that can destroy conventional rail infrastructure:

1. Massive Wheel Loads: A fully loaded gantry crane can place thousands of tons of pressure on the rail system. This can lead to rail wear, girder fatigue, and foundation damage if not managed correctly.
2. Dynamic & Lateral Forces: Wind loading on the crane’s massive structure, combined with the forces from acceleration, deceleration, and trolley movement, creates intense lateral thrust that tries to push the rails apart.
3. Corrosive Marine Environment: Constant exposure to saltwater spray, high humidity, and rain creates a perfect storm for corrosion. Bolted fasteners are particularly vulnerable, as rust can seize threads or cause “rust-jacking,” where the corrosion itself forces components apart and loosens the assembly.

Traditional bolted rail clips are a significant maintenance liability in this setting. They loosen under the constant vibration and heavy loads, leading to rail misalignment, accelerated wear on expensive crane wheels, and ultimately, costly downtime for repairs. To ensure 24/7 availability, engineers need a shipbuilding gantry crane rail system that offers permanent stability and superior corrosion resistance.

9 Series Welded Rail Clips: The Heavy-Duty Shipbuilding Solution

The 9 Series Heavy-Duty Welded Rail Clips are engineered specifically to overcome the challenges of the shipbuilding environment. By using a forged steel base that is welded directly to the crane girder or soleplate, this system provides a permanent, maintenance-free solution that will not loosen over time.

Key advantages include:

• Forged Strength & Welded Bond: The welded base creates a permanent mechanical connection with the support structure, offering unmatched resistance to the extreme lateral forces generated by wind and crane dynamics.
• Self-Locking Mechanism: The unique wedge-action design ensures constant downward pressure on the rail. As lateral forces increase, the clip’s grip tightens, preventing rail movement and ensuring precise alignment.
• Superior Corrosion Resistance: The welded design eliminates the crevices found in bolted assemblies where saltwater collects. When combined with hot-dip galvanization, this system offers a robust, long-term defense against marine corrosion.

Heavy-Duty 9 Series Welded Rail Clips Recommendation

Choosing the correct clip is critical for the safety and reliability of your shipyard’s most valuable asset. The selection depends on the crane’s size and lifting capacity.

XINGRAIL 9220/20/45

This is the industry standard for the main Goliath Gantry Cranes used in dry docks and assembly areas. With an immense 235 kN (24 tons) of lateral resistance per clip, it is engineered to secure the rails under the heaviest super-block lifts and the highest wind loads.

• Download 9220 Technical PDF

9220 Welded Rail Fixing Clips Installation:

1. Preparation: Clean the steel girder or soleplate of all rust, paint, and contaminants. Position the clip base according to the rail width.
2. Welding: Weld the clip base on three sides (the two sides perpendicular to the rail and the back side). Do not weld the side closest to the rail to prevent heat distortion.
3. Weld Spec: Use a 5mm throat thickness fillet weld. Utilize low-hydrogen electrodes such as AWS E7018 or E7028 to ensure a high-strength, ductile weld capable of withstanding dynamic loads.
4. Torque: After the weld cools, assemble the upper clip and tighten the bolt to 350 Nm.

XINGRAIL 9216/08/40

A robust solution for Block Assembly Hall Cranes, portal cranes, and other medium-to-heavy duty cranes in the shipyard. It provides 130 kN (13.3 tons) of lateral resistance, ensuring stability for frequent lifting and moving of smaller ship modules.

• Download 9216 Technical PDF

9216 Welded Rail Fixing Clips Installation:

1. Positioning: Align the base plate relative to the rail foot, allowing for the clip’s 8mm of horizontal adjustment.
2. Welding: Weld the base on its three outer sides using a 5mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or equivalent low-hydrogen rods.
4. Torque: After cooling, assemble the clip and tighten the bolt to 350 Nm.

XINGRAIL 9120/15/38

Dry dock foundations and long crane runways can experience settlement over years of heavy use. The 9120 offers 15mm of lateral adjustment after welding, allowing maintenance crews to realign long rail runs without the need for costly and time-consuming cutting and re-welding.

• Download 9120 Technical PDF

9120 Welded Rail Fixing Clips Installation:

1. Alignment: Place the weldable base to accommodate the desired adjustment range.
2. Welding: Perform a 5mm throat thickness fillet weld on the three outer sides.
3. Electrodes: Low-hydrogen AWS E7018 or E7028.
4. Torque: Secure the clip by tightening the bolt to 350 Nm.

XINGRAIL 9116/08/3

Ideal for Workshop Cranes, semi-gantry cranes, or panel line transfer systems that operate on narrower girders. It provides a solid 55 kN of lateral resistance for auxiliary lifting tasks.

• Download 9116 Technical PDF

9116 Welded Rail Fixing Clips Installation:

1. Setup: Position the clip on the narrow girder flange.
2. Welding: Weld the three accessible sides using a 4mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or E7028.
4. Torque: Once cooled, install the upper component and torque the bolt to 125 Nm.

Technical Comparison: XINGRAIL 9 Series Models for Shipbuilding

Model	Lateral Resistance	Horizontal Adjustment	Best Use Case
9220/20/45	235 kN	20 mm	Goliath Gantry Cranes (Dry Dock)
9216/08/40	130 kN	8 mm	Block Assembly & Portal Cranes
9120/15/38	120 kN	15 mm	Long runways prone to settlement
9116/08/3	55 kN	8 mm	Workshop & Auxiliary Cranes

Why Use Reinforced Crane Rail Pads?

While clips provide lateral stability, the Crane Rail Pad is the unsung hero that protects the entire foundation.

1. Shock Absorption: The pad absorbs the high-frequency vibrations from the crane’s travel, protecting the concrete foundation from micro-cracking and fatigue over millions of cycles.
2. Load Uniformity: It compensates for minor surface irregularities between the rail and the steel soleplate, eliminating “point loading” that can lead to premature rail failure.
3. Corrosion Control: By removing direct steel-on-steel contact, the pad prevents fretting corrosion, a common and destructive problem in humid, saltwater environments.

Installation & Maintenance Best Practices

Reliability is paramount. A robust installation ensures the crane system operates safely and efficiently for decades.

• Welding Protocol: The clip base must be welded on three sides using a 5mm throat thickness fillet weld (4mm for the 9116), adhering to all site safety protocols.
• Electrode Selection: Always use low-hydrogen electrodes (AWS E7018 or E7028) to prevent hydrogen cracking in the weld zone, which is a risk in damp marine air.
• Torque Specifications: Applying the correct torque is essential to engage the self-locking mechanism.
• Post-Weld Adjustment: Use the clip’s lateral adjustment to achieve a perfectly straight and parallel rail line before final tightening. This is critical for preventing crane skewing and wheel wear.

Global Rail Compatibility

Our heavy-duty crane rail fastening systems are compatible with the heavy rail profiles used in shipyards globally.

• European Standards: Compatible with DIN536 rails (e.g., A120, A150).
• North American Standards: Designed for heavy-duty AREA Railway Standard Track.
• Asian & Regional: Fully compatible with China Standard ISO/CE tracks (QU100, QU120), India Standard Railway Tracks, and GOST Standard Tracks used in the world’s largest shipyards.

Frequently Asked Questions (FAQ)

Q: Why choose welded clips over bolted clips for shipyards?
A: Welded clips provide superior lateral resistance and do not loosen under the heavy dynamic vibrations and high wind loads typical of shipyard gantry cranes, drastically reducing long-term maintenance needs.

Q: Can these clips accommodate rail expansion on a long runway?
A: Yes. The vulcanized rubber nose holds the rail down securely but allows it to move longitudinally, accommodating thermal expansion and contraction without building up dangerous internal stresses.

Q: What is the expected lifespan of the rubber nose in a marine environment?
A: The synthetic rubber is specially formulated to be resistant to UV radiation, oil, and saltwater, and is designed to last over 15 years in harsh maritime conditions.
