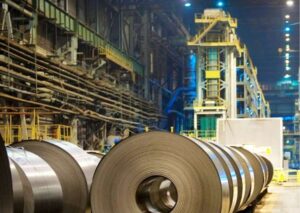

Steel Rolling Mills: High-Temperature-Resistant Clips for Cranes Handling Molten Steel and Heavy Rolls

In the intense environment of a steel rolling mill, the crane rail system is the unsung hero of production. From the ladle cranes transporting molten steel at 1,600°C to the heavy-duty overhead cranes moving massive steel coils and work rolls, the infrastructure faces a unique combination of extreme heat and crushing weight. A standard rail fastening system will simply not survive here. As mills push for higher throughput and shorter maintenance windows, the demand for high-temperature crane rail fastening solutions has never been more critical for safety and operational continuity.

The Challenge: Extreme Heat and Heavy Static Loads

Steel mill cranes operate in one of the most hostile industrial environments on earth. The rail systems supporting these cranes must withstand forces that would destroy standard infrastructure:

1. Extreme Thermal Cycling: Ladle cranes operating near furnaces and casters are exposed to intense radiant heat. This causes rapid thermal expansion and contraction of the rail and the steel girder. If the fastening system cannot accommodate this movement, the rail will buckle or the clips will shear.
2. Massive Wheel Loads: A ladle crane carrying a full heat of liquid steel exerts enormous static pressure on the rails. This heavy loading, combined with the heat, can soften standard steel components, leading to deformation and failure.
3. Abrasive Dust and Scale: The mill environment is filled with conductive metallic dust and scale. In bolted systems, this debris works into threads and moving parts, causing them to seize or wear prematurely.

Conventional bolted clips are a major liability in steel mills. The heat causes bolts to expand and loosen, while the vibration from heavy rolling operations accelerates the process. To ensure the safety of liquid metal handling, engineers need a steel mill crane rail system that offers permanent welded stability and heat-resistant flexibility.

9 Series Welded Rail Clips: The High-Heat Solution

The 9 Series Heavy-Duty Welded Rail Clips are engineered to thrive in the punishing conditions of steel production. By using a forged steel base welded directly to the girder, these systems eliminate the weak points of bolted connections, providing a permanent solution that remains stable even under extreme thermal stress.

Key advantages for steel mills include:

• Heat-Resistant Stability: The welded base creates a monolithic bond with the girder structure. Unlike bolts that can stretch or loosen when heated, the welded connection maintains its integrity in high-temperature zones.
• Accommodates Thermal Expansion: The rail in a steel mill expands significantly. The 9 Series clips feature a vulcanized rubber nose that holds the rail down securely while allowing it to slide longitudinally. This prevents the dangerous build-up of internal stresses that cause rail buckling.
• Self-Locking Mechanism: The wedge-action design ensures the rail is held tight against the soleplate. As heavy loads traverse the rail, the clip’s grip reinforces itself, preventing the lateral movement that causes wheel flange wear.

Heavy-Duty 9 Series Welded Rail Clips Recommendation

Selecting the right clip is vital for the safety of molten metal handling and the efficiency of the rolling line. The choice depends on the specific crane capacity and the thermal conditions of the bay.

XINGRAIL 9220/20/45

This is the industry standard for Ladle Cranes and Charging Cranes. With a massive 235 kN (24 tons) of lateral resistance, it is engineered to secure the rails under the heaviest liquid metal loads while resisting the side-thrust from crane acceleration.

• Download 9220 Technical PDF

9220 Welded Rail Fixing Clips Installation:

1. Preparation: Clean the girder surface of all mill scale, oil, and dust. Position the clip base according to the rail width.
2. Welding: Weld the clip base on three sides (the two sides perpendicular to the rail and the back side). Do not weld the side closest to the rail to avoid heat distortion.
3. Weld Spec: Use a 5mm throat thickness fillet weld. Utilize low-hydrogen electrodes such as AWS E7018 or E7028 to ensure a high-strength bond capable of withstanding thermal shock.
4. Torque: After the weld cools, assemble the upper clip and tighten the bolt to 350 Nm.

XINGRAIL 9216/08/40

A robust solution for Coil Handling Cranes and Slab Yard Cranes. It provides 130 kN (13.3 tons) of lateral resistance, ensuring stability for the continuous movement of finished products and raw materials.

• Download 9216 Technical PDF

9216 Welded Rail Fixing Clips Installation:

1. Positioning: Align the base plate relative to the rail foot, allowing for the clip’s 8mm of horizontal adjustment.
2. Welding: Weld the base on its three outer sides using a 5mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or equivalent low-hydrogen rods.
4. Torque: After cooling, assemble the clip and tighten the bolt to 350 Nm.

XINGRAIL 9120/15/38

Steel mill structures often distort over time due to the immense heat and weight. The 9120 offers 15mm of lateral adjustment after welding, allowing maintenance teams to realign tracks that have shifted due to thermal expansion or column settlement.

• Download 9120 Technical PDF

9120 Welded Rail Fixing Clips Installation:

1. Alignment: Place the weldable base to accommodate the adjustment range.
2. Welding: Perform a 5mm throat thickness fillet weld on the three outer sides.
3. Electrodes: Low-hydrogen AWS E7018 or E7028.
4. Torque: Secure the clip by tightening the bolt to 350 Nm.

XINGRAIL 9116/08/3

Ideal for Roll Shop Cranes and maintenance hoists operating on narrower girders. It provides 55 kN of resistance for precision handling of mill rolls and bearings.

• Download 9116 Technical PDF

9116 Welded Rail Fixing Clips Installation:

1. Setup: Position the clip on the narrow girder flange.
2. Welding: Weld the three accessible sides using a 4mm throat thickness fillet weld.
3. Electrodes: Use AWS E7018 or E7028.
4. Torque: Once cooled, install the upper component and torque the bolt to 125 Nm.

Technical Comparison: XINGRAIL 9 Series Models for Steel Mills

Model	Lateral Resistance	Horizontal Adjustment	Best Use Case
9220/20/45	235 kN	20 mm	Ladle Cranes, Charging Cranes
9216/08/40	130 kN	8 mm	Coil Cranes, Slab Handling
9120/15/38	120 kN	15 mm	Runways prone to thermal shift
9116/08/3	55 kN	8 mm	Roll Shop, Maintenance Hoists

Why Use Reinforced Crane Rail Pads?

In a steel mill, the Crane Rail Pad acts as a thermal buffer and shock absorber.

1. Thermal Protection: While not a complete heat shield, the pad reduces direct heat transfer from the hot rail to the girder top flange, helping to minimize thermal distortion of the crane beam.
2. Load Distribution: It distributes the immense wheel loads of ladle cranes evenly, preventing the “crushing” of the rail web and localized damage to the girder.
3. Wear Reduction: By preventing metal-to-metal contact, the pad eliminates fretting corrosion caused by the constant vibration of the rolling mill, extending the life of the entire support structure.

Installation & Maintenance Best Practices

Maintenance windows in a steel mill are short and costly. Installing a system that lasts is key to profitability.

• Welding Protocol: The clip base must be welded on three sides using a 5mm throat thickness fillet weld (4mm for the 9116).
• Electrode Selection: Always use low-hydrogen electrodes (AWS E7018 or E7028) to ensure the welds are robust enough to handle thermal cycling without cracking.
• Torque Specifications: Apply the correct torque to ensure the self-locking mechanism is engaged.
• High-Temp Considerations: For areas directly above furnaces or ladles, consult with us regarding specialized high-temperature nose materials to ensure longevity.

Global Rail Compatibility

Our heavy-duty crane rail fastening systems are compatible with the heavy rail profiles used in steel mills globally.

• European Standards: Compatible with DIN536 rails (e.g., A100, A120, A150), standard in many modern mills.
• North American Standards: Designed for heavy-duty AREA Railway Standard Track (e.g., 175lb) and CR sections (e.g., CR175).
• Asian & Regional: Fully compatible with China Standard ISO/CE tracks (QU100, QU120), India Standard Railway Tracks, and GOST Standard Tracks.

Frequently Asked Questions (FAQ)

Q: Can the rubber nose withstand the heat of a steel mill?
A: Yes. The standard synthetic rubber nose is designed for industrial heat. For extreme radiant heat zones (e.g., directly over a ladle), we can supply high-temperature specific variants.

Q: How do these clips handle the dust and scale?
A: The sealed design prevents scale from accumulating under the rail seat, and the lack of exposed threads (on the base) means there are fewer places for debris to cause seizing.

Q: Are these clips suitable for high-speed coil cranes?
A: Absolutely. The self-locking wedge design is perfect for the high acceleration and braking forces generated by fast-moving coil and slab handling cranes.
