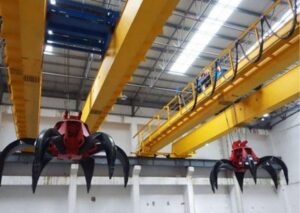

In the relentless cycle of Waste-to-Energy (WtE) facilities, the refuse grab crane is the most critical piece of material handling equipment. Operating 24 hours a day, 365 days a year, these cranes are responsible for mixing waste in the pit and feeding the incinerator hoppers. The crane rail system supporting this continuous operation faces one of the most punishing duty cycles in any industry. Unlike a warehouse crane that might lift a few times an hour, a WtE grab crane performs thousands of high-speed cycles daily. This creates an environment of extreme mechanical fatigue, making high-performance, high-cycle crane rail fastening essential for preventing unplanned downtime and maintaining throughput.
The Challenge: Continuous Duty and High-Cycle Fatigue
Waste-to-Energy plants operate on a “burn continuous” basis. If the crane stops, the incinerator starves, and energy production halts. The operational demands on the rail infrastructure are severe:
- Extreme Duty Cycles: These cranes operate at high speeds with rapid acceleration and deceleration. The constant back-and-forth motion creates millions of stress cycles annually, leading to metal fatigue in standard rail clips.
- Shock Loading: The grab bucket digging into the waste pile and releasing loads creates significant vertical shock and lateral vibration.
- Contaminated Environment: The waste pit environment is filled with dust and debris. In a bolted system, this debris can work its way into threads, while the vibration causes nuts to back off.
Conventional bolted fasteners are notorious for failing in WtE plants. The sheer volume of cycles causes bolts to loosen or shear due to fatigue. This leads to rail misalignment, accelerated wheel wear, and dangerous operational conditions. To ensure the reliability of the fuel feed system, plant engineers need a grab crane rail system that offers permanent stability and superior fatigue resistance.
9 Series Welded Rail Clips: The Continuous-Duty Solution
The 9 Series Heavy-Duty Welded Rail Clips are engineered to withstand the rigors of continuous-duty applications. By utilizing a base that is welded directly to the girder, these clips eliminate the weak points associated with threaded fasteners under high-cycle fatigue.
Key advantages for Waste-to-Energy include:
- Fatigue Resistance: The welded connection provides a monolithic bond that does not degrade over millions of load cycles. There are no bolts to stretch, loosen, or shear under constant reversing loads.
- Self-Locking Mechanism: The wedge-action design ensures the rail remains tightly secured. As the grab crane creates lateral forces while digging, the clip’s grip actually reinforces itself, preventing rail movement.
- Debris Tolerance: The design minimizes moving parts and open threads where waste dust and grime can accumulate. The vulcanized rubber nose seals the rail seat, preventing abrasive particles from causing wear.
Heavy-Duty 9 Series Welded Rail Clips Recommendation
Selecting the right clip is vital for the longevity of the crane runway. The choice depends on the crane’s capacity and the intensity of the duty cycle.
XINGRAIL 9220/20/45
This is the preferred solution for Main Feed Cranes in large-scale WtE plants. With 235 kN (24 tons) of lateral resistance, it is built to handle the aggressive digging forces and high travel speeds of heavy-duty grab cranes.
9220 Welded Rail Fixing Clips Installation:
- Preparation: Clean the girder surface thoroughly to remove grease, dust, or ash. Position the clip base according to the rail width.
- Welding: Weld the clip base on three sides (the two sides perpendicular to the rail and the back side). Do not weld the side closest to the rail to prevent heat distortion.
- Weld Spec: Use a 5mm throat thickness fillet weld. Given the fatigue loading, high-quality welding with low-hydrogen electrodes (AWS E7018 or E7028) is critical to prevent toe cracks.
- Torque: After the weld cools, assemble the upper clip and tighten the bolt to 350 Nm.
XINGRAIL 9216/08/40
A robust choice for Slag Handling Cranes or secondary mixing cranes. It provides 130 kN (13.3 tons) of lateral resistance, ensuring reliability for essential but slightly lower-intensity operations.
9216 Welded Rail Fixing Clips Installation:
- Positioning: Align the base plate relative to the rail foot, allowing for the clip’s 8mm of horizontal adjustment.
- Welding: Weld the base on its three outer sides using a 5mm throat thickness fillet weld.
- Electrodes: Use AWS E7018 or equivalent low-hydrogen rods.
- Torque: After cooling, assemble the clip and tighten the bolt to 350 Nm.
XINGRAIL 9120/15/38
The heat from the incinerator and the bunker can cause structural movement over time. The 9120 offers 15mm of lateral adjustment, allowing maintenance teams to realign tracks that have shifted due to thermal expansion or building settlement without major hot work.
9120 Welded Rail Fixing Clips Installation:
- Alignment: Place the weldable base to accommodate the adjustment range.
- Welding: Perform a 5mm throat thickness fillet weld on the three outer sides.
- Electrodes: Low-hydrogen AWS E7018 or E7028.
- Torque: Secure the clip by tightening the bolt to 350 Nm.
XINGRAIL 9116/08/3
Ideal for Ash Handling Monorails or maintenance hoists in the boiler house. It provides 55 kN of resistance and fits on narrower support beams often found in auxiliary areas.
9116 Welded Rail Fixing Clips Installation:
- Setup: Position the clip on the narrow girder flange.
- Welding: Weld the three accessible sides using a 4mm throat thickness fillet weld.
- Electrodes: Use AWS E7018 or E7028.
- Torque: Once cooled, install the upper component and torque the bolt to 125 Nm.
Technical Comparison: XINGRAIL 9 Series Models for WtE
|
Model |
Lateral Resistance |
Horizontal Adjustment |
Best Use Case |
|
9220/20/45 |
235 kN |
20 mm |
Main Feed Grab Cranes (High Duty) |
|
9216/08/40 |
130 kN |
8 mm |
Slag Cranes, Ash Handling |
|
9120/15/38 |
120 kN |
15 mm |
Runways subject to thermal shift |
|
9116/08/3 |
55 kN |
8 mm |
Maintenance Hoists, Monorails |
Why Use Reinforced Crane Rail Pads?
In a high-cycle environment, the Crane Rail Pad acts as a shock absorber and fatigue barrier.
- Fatigue Protection: By absorbing the shock loads from millions of crane cycles, the pad reduces the stress transferred to the welds and the girder web, preventing fatigue cracking in the support structure.
- Noise Reduction: WtE plants can be noisy. The pad dampens the rumble of the crane wheels, improving conditions for operators and maintenance staff.
- Wear Reduction: It prevents the rail from grinding against the steel soleplate, extending the life of both the rail and the support system.
Installation & Maintenance Best Practices
Accessing the crane rail in a waste bunker is difficult, dangerous, and dirty. The goal is a “fit and forget” installation.
- Welding Protocol: The clip base must be welded on three sides using a 5mm throat thickness fillet weld (4mm for the 9116).
- Electrode Selection: Always use low-hydrogen electrodes (AWS E7018 or E7028) to ensure the highest fatigue strength in the weld.
- Torque Specifications: Apply the correct torque to ensure the self-locking mechanism is fully engaged.
- Alignment Checks: Use the clip’s adjustment features to ensure the rail is straight. A straight rail significantly reduces side-loading on the crane wheels, which is a major cause of downtime in grab cranes.
Global Rail Compatibility
Our heavy-duty crane rail fastening systems are compatible with the rail profiles typically used in Waste-to-Energy plants globally.
- European Standards: Compatible with DIN536 rails (e.g., A75, A100, A120), the standard for most European WtE technology.
- North American Standards: Designed for ASCE and AREA rail sections used in North American facilities.
- Asian & Regional: Fully compatible with China Standard ISO/CE tracks, India Standard Railway Tracks, and GOST Standard Tracks.
Frequently Asked Questions (FAQ)
Q: How often do these clips need retightening?
A: Unlike bolted clips, the 9 Series welded clips are designed to be maintenance-free. The self-locking wedge design resists loosening even under the high vibration of a grab crane.
Q: Can these clips withstand the corrosive environment of a waste pit?
A: Yes. The clips are hot-dip galvanized and the welded base eliminates crevices where corrosive waste leachate or condensation can accumulate.
Q: Is the rubber nose resistant to oils found in waste?
A: Yes, the synthetic rubber nose is oil and chemical resistant, ensuring it maintains its elasticity and grip even in a contaminated environment.
