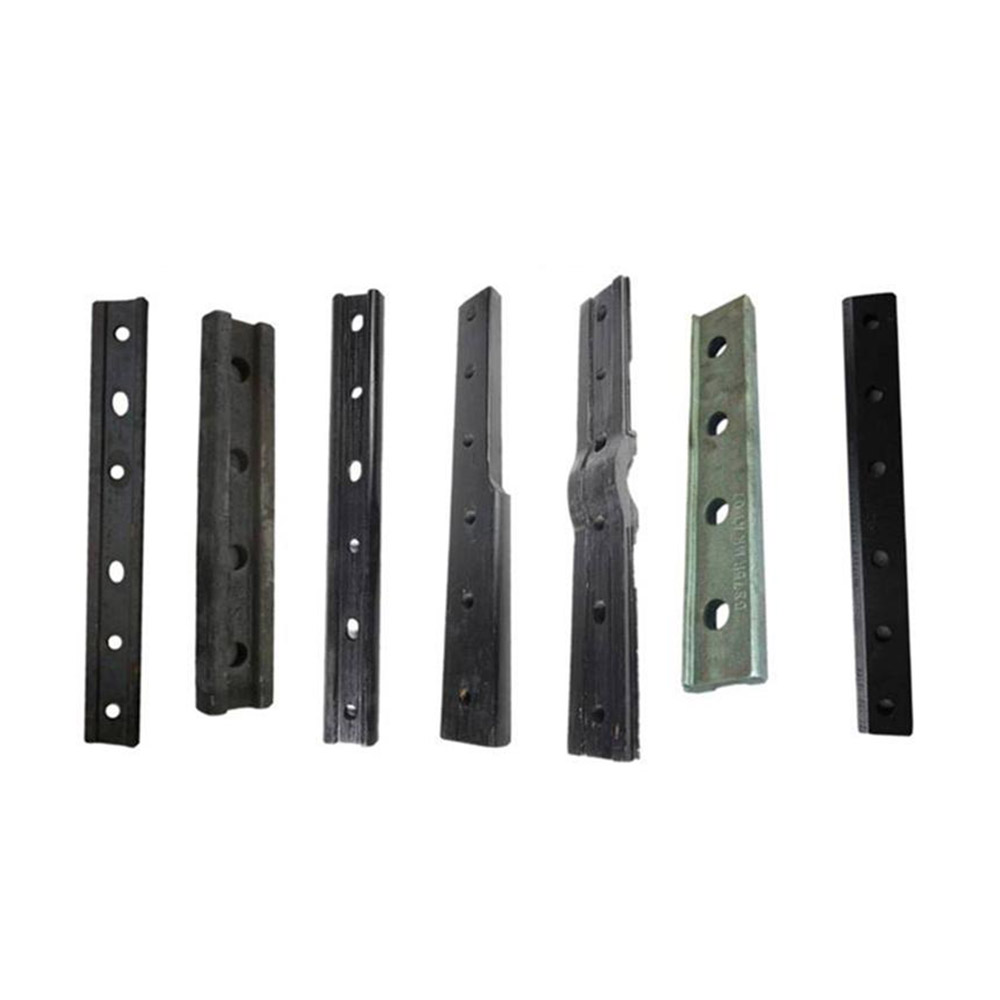

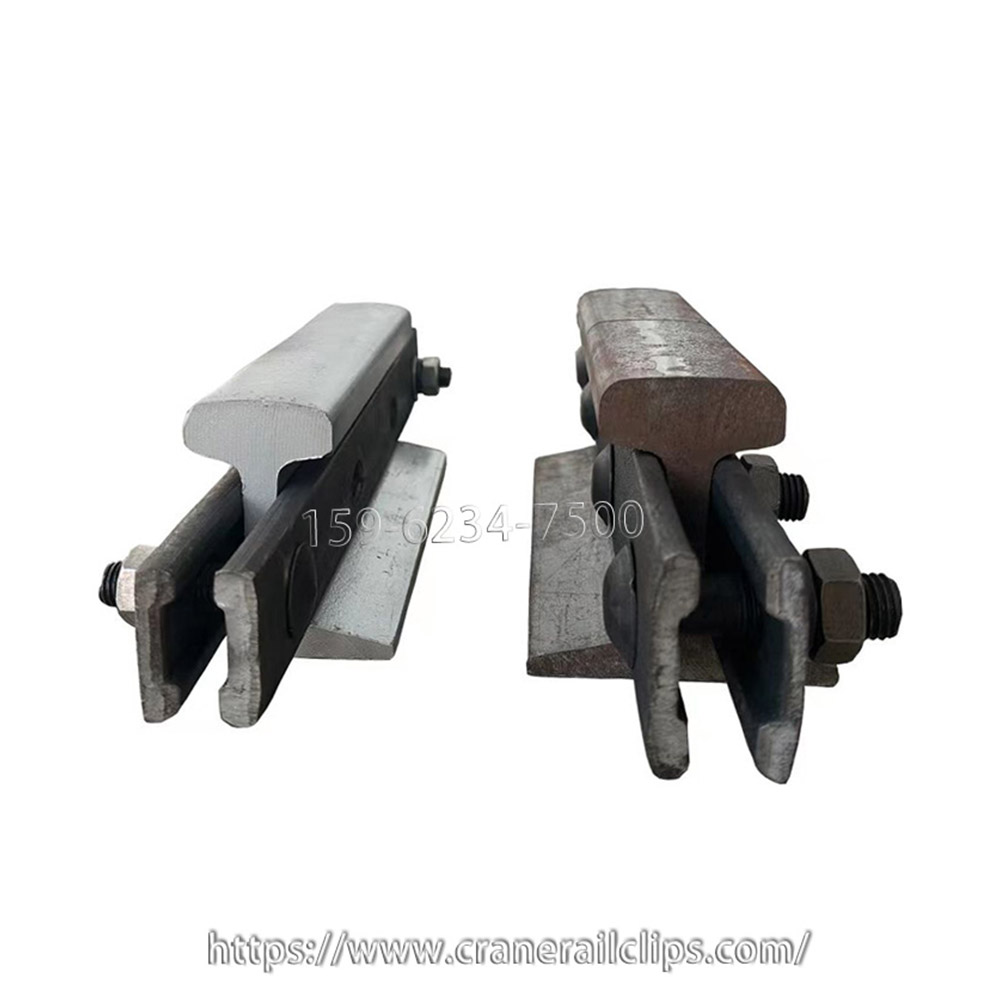

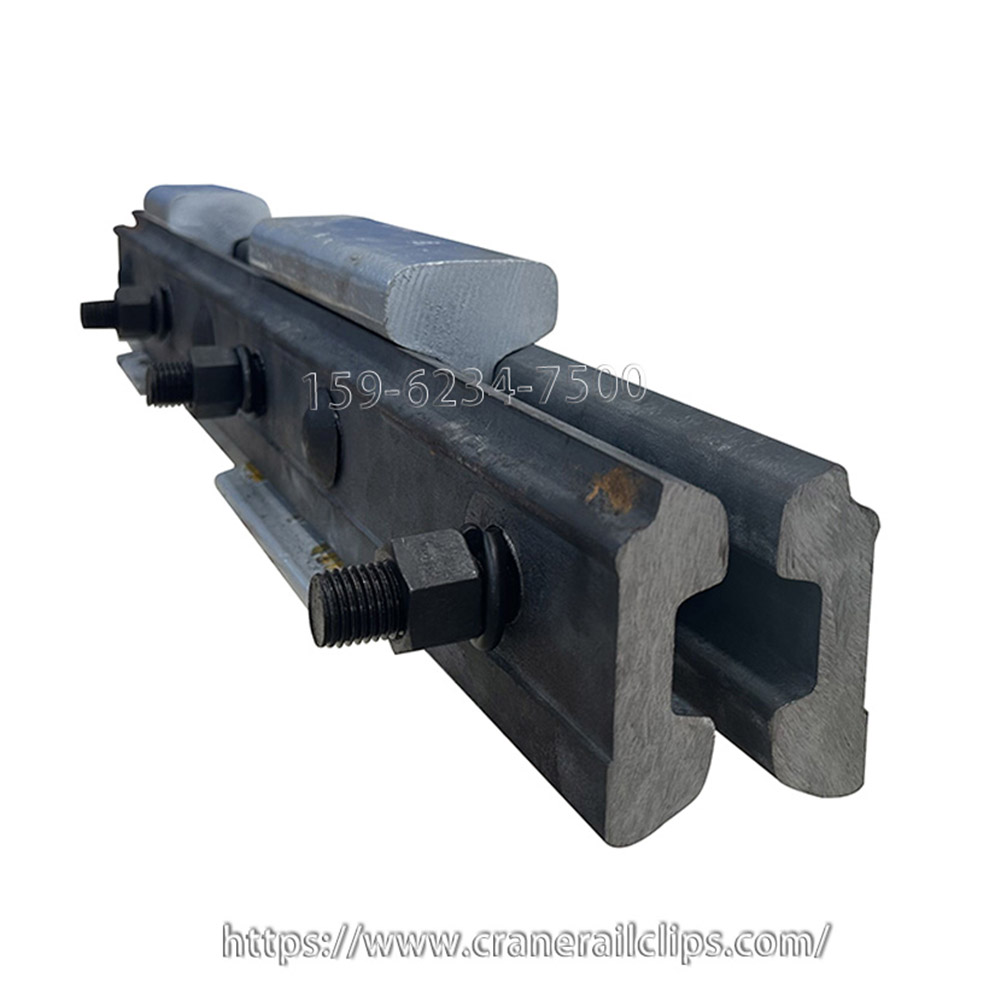

Fish plates railway offer a practical and efficient alternative to welding, simplifying installation and reducing labor costs. Designed for quick and easy assembly with matching fish bolts.

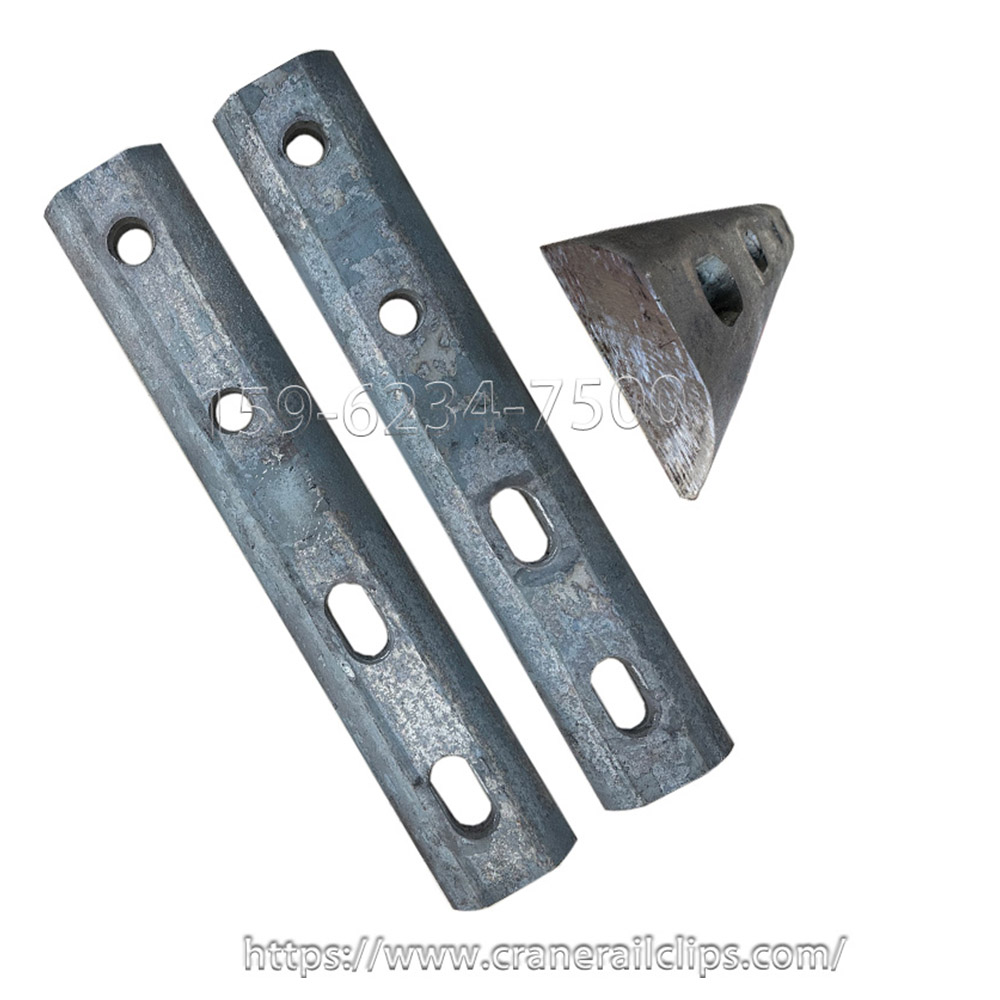

Xingrail is a professional manufacture a comprehensive range of fish plates for light, heavy, and ultra-heavy rail applications. Each plate features a unique arched bridge design, engineered to minimize the impact from train wheels passing over the joint. This innovative structure enhances the longitudinal continuity of the rail, reduces wear, and ensures a smoother, safer ride. By improving train passage stability and absorbing shock, our fish plates extend the life of your track and guarantee superior performance and durability.
|
Rail Type |
Fish Plate Length (mm) |
Cross-Sectional Area (cm²) |
Theoretical Weight (kg) |
Distance from Center of Gravity to Various Points (cm) |
Inclination Angle of Axial Line |
|
Per Meter Length Weight |
Without Bolt Holes |
With Bolt Holes |
|||
|
38kg/m |
790 |
26.01 |
20.37 |
16.09 |
15.57 |
|
43kg/m |
790 |
26.01 |
20.37 |
16.09 |
15.57 |
|
50kg/m |
820 |
30.05 |
23.53 |
19.29 |
18.72 |
|
Rail type |
Fishplate length/mm |
Cross-sectional area/cm2 |
Theoretical weight/kg |
Distance from center of gravity to various locations/cm |
The inclination angle of the axis |
||||||
|
Weight per meter length |
Weight of each piece does not deduct bolt holes |
Deduct the weight of the bolt holes |
Distance to top Y1 |
Distance to bottom Y2 |
Distance to the inside X1 |
Distance to outside X2 |
Angle φ of the horizontal axis of the Z axis |
Angle β between the neutral axis and the Z axis |
|||
|
38kg/m |
790 |
26.01 |
20.37 |
16.09 |
15.57 |
4.89 |
4.51 |
2.09 |
1.88 |
4°03′ |
27°11′ |
|
43kg/m |
790 |
26.01 |
20.37 |
16.09 |
15.57 |
4.89 |
4.51 |
2.09 |
1.88 |
4°03′ |
27°11′ |
|
50kg/m |
820 |
30.05 |
23.53 |
19.29 |
18.72 |
5.37 |
5.05 |
2.38 |
2.18 |
4°39′ |
30°15′ |
|
Type |
Chemical Composition |
Mechanical Properties |
|
YW35 Low-Temperature Fish Plate |
C: 0.32-0.40%, Mn: 1.10-1.30%, Si: 0.30-0.50%, P: 0.035%, S: 0.035%, Mo: 0.15-0.25%, V: 0.06-0.20%, Nb: 0.04-0.07%, Cu: 0.20% |
After heat treatment at -40°C: σb ≥ 720 MPa, σs ≥ 520 MPa, δ ≥ 13%, ψ ≥ 30%, Ak ≥ 20 J, Cold bending 60° intact |
|
Non-Quenched Bainitic Fish Plate |
C: 0.15%, Mn: 1.026%, Si: 0.576%, P < 0.006%, S < 0.007%, Cr: 0.299%, V: 0.028%, Nb: 0.04-0.07%, Cu: 0.121%, Ni: 0.030% |
σb: 966.3 MPa, σs: 722.3 MPa, δ: 18.7%, Ak ≥ 60.7 J, Cold bending 60° |
|
American XY-30 Low-Temperature High-Strength Fish Plate |
C: 0.33%, Mn: 1.49%, Si: 0.32%, P: 0.016%, S: 0.017%, Cr: 0.07%, V: 0.12%, Nb: 0.04%, Cu: 0.18%, Ni: 0.05%, Mo: 0.19%, Ti: 0.001% |
Without heat treatment: σb ≥ 900 MPa, σs ≥ 780 MPa, δ ≥ 17%, ψ ≥ 40%, HB 245-276, Ak ≥ 38.5 J (-30°C), Cold bending 30° intact |
|
DY-30 Fish Plate |
C: 0.20-0.38%, Mn: 1.30-1.50%, Si: 0.28-0.33%, P ≤ 0.035%, S ≤ 0.035%, Cr: 0.10-0.30%, V: ~0.1%, Nb: Residual, Cu: Residual, Ni: Residual, Mo: 0.02-0.20%, Ti ≤ 0.1% |
After heat treatment (900°C quenching, 600°C tempering): σb: 1082.3 MPa, σs: 960.8 MPa, δ: 15.3%, ψ: 57%, Ak: 53.5 J (-30°C), Cold bending 180°, Fatigue strength |
|
E483 Fish Plate |
C: 0.18%, Mn: 1.26%, Si: 0.55%, P: 0.030%, S: 0.030%, Cr: 0.60%, V: 0.020%, Nb: 0.25%, Cu: 0.18%, Ni: 1.00%, Mo: 0.40% |
For North American clients (cold regions): σb ≥ 800 MPa, σs ≥ 600 MPa, δ ≥ 15%, ψ ≥ 40%, HB 240-330, Ak ≥ 30 J (-30°C), Cold bending 180°, Fatigue strength intact (5×10⁶ cycles) |
