India Standard Railway Track Supplier From China

India Standard Railway Track Supplier From China

Steel rails, also known as iron rails, can be used in ports, docks, metallurgical steel mills, railroads, tunnels, mines, factories, etc… Its role is to guide the locomotive wheels, to withstand the enormous pressure of the wheels and to maintain the stability of railroad transportation. The rails must provide a continuous, smooth and minimal rolling surface for the wheels. In electrified railroads or automatic blocking sections, rails can also be used as track circuits. The material of the rails determines the safety and service life of the rails.

Welcome to inquire the price list and quotation, we are one of the leading railway track manufacturers and suppliers in China!

Crane Rails Railway Tracks description

XINGRAIL is an ISO 9001/2008 certified company. All processes are carried out in accordance with the requirements of ISO quality management system, from the supply of commodity control to the finished product out of the factory, we follow the standard procedures, and we have a strict quality control system for suppliers:

  1. Before the production of IN Railway Standard Rail, we will check and test the raw materials, and we ask the suppliers to provide the production batch number, chemical composition, mechanical properties, and other testing indicators.
  2. After the production of crane rail is completed, our quality control inspectors will conduct sample sampling and batch testing, and provide raw material certificates of compliance and other means to control the testing process.
  3. According to the different requirements of the crane rail, we will carry out the corresponding physical and chemical tests and inspections, if the results do not meet our requirements , as long as it meets our standards , we will refuse to accept the material.
  4. For semi-finished products of crane tracks and their external suppliers, we often organize quality control coordination meetings and provide technical advice and guidance. Ensure that qualified products are delivered to our customers before shipment.

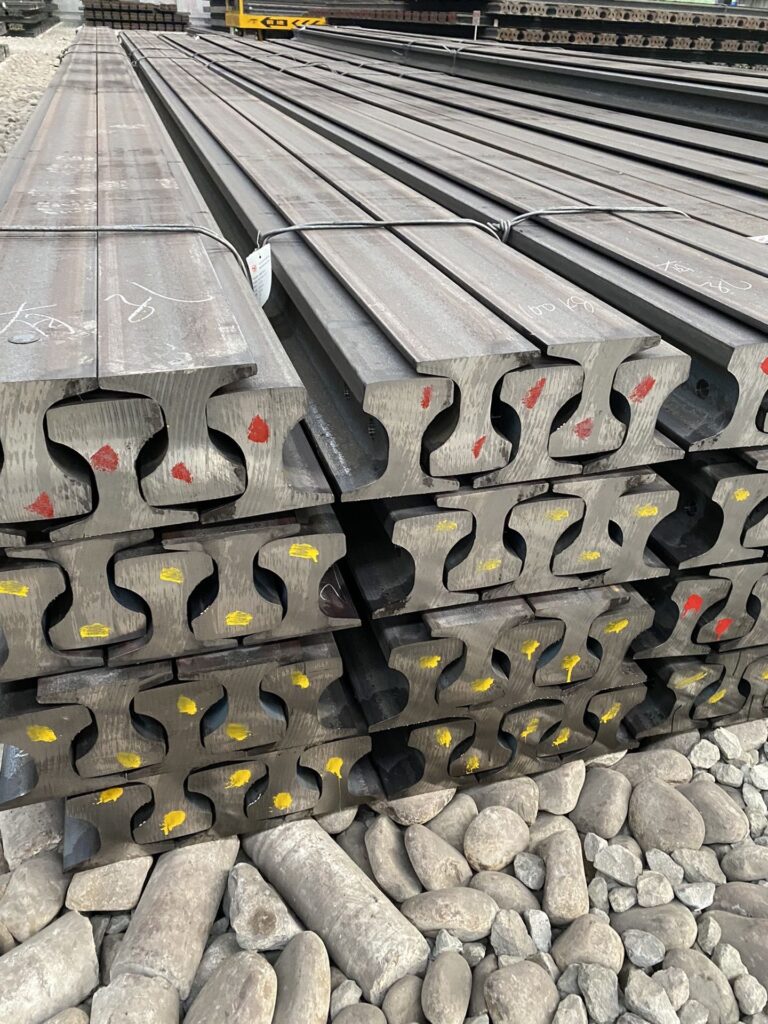

India Standard Railway Track Supplier From China main image
India Standard Railway Track Supplier From China
India Standard Railway Track Supplier From China
India Standard Railway Track Supplier From China

Crane Rails Railway Tracks Parameters

I SCR STEEL RAIL INDIA STANDRAD





SIZE

DIMENSION(mm)





WEIGHT

(kg/m)





MATERIAL





LENGTH

(m)

HEAD  A

(mm)

HEIGHT B

(mm)

BASE C

(mm)

WEB   D

(mm)

ISCR50

51.2

90

90

20

29.8

55Q/U71Mn

9-12

ISCR60

61.3

105

105

24

40

55Q/U71Mn

9-12

ISCR70

70

120

120

28

52.8

U71Mn

9-12

ISCR80

81.7

130

130

32

64.2

U71Mn

9-12

ISCR100

101.9

150

150

38

89

U71Mn

9-12

ISCR120

122

170

170

44

118

U71Mn

9-12

contact us. we are here to help you!
