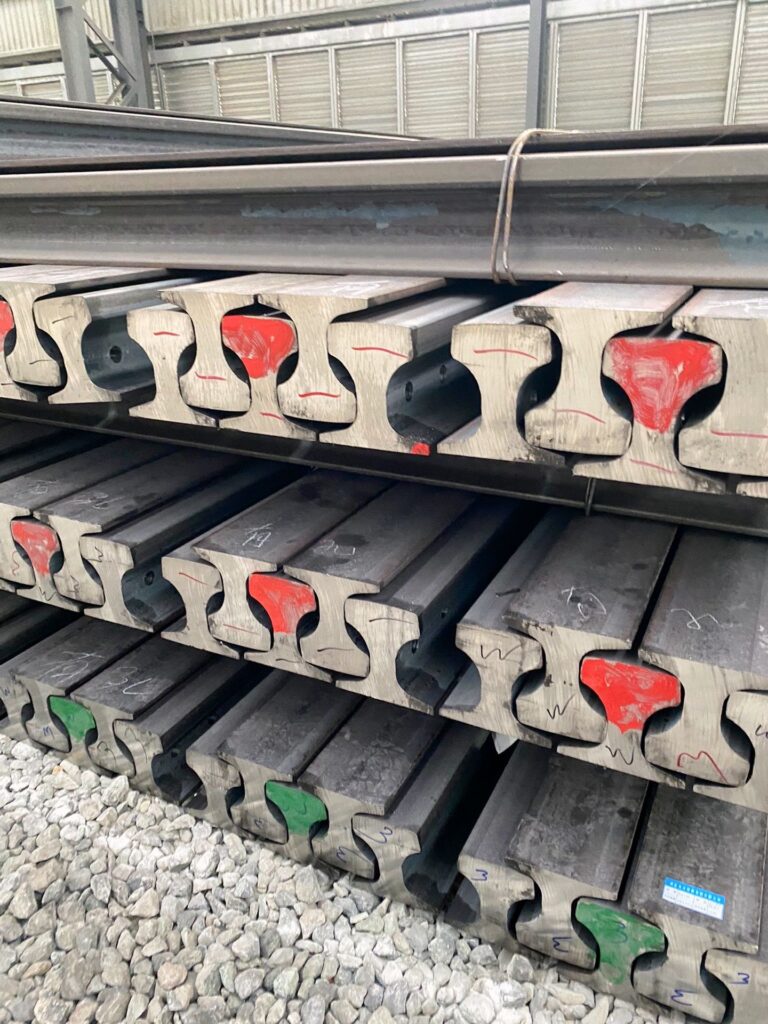

Home » Products » Crane Rails Railway Tracks » SABS Standard Rails Track From Manufacturer
Steel rails, also known as iron rails, can be used in ports, docks, metallurgical steel mills, railroads, tunnels, mines, factories, etc… Its role is to guide the locomotive wheels, to withstand the enormous pressure of the wheels and to maintain the stability of railroad transportation. The rails must provide a continuous, smooth and minimal rolling surface for the wheels. In electrified railroads or automatic blocking sections, rails can also be used as track circuits. The material of the rails determines the safety and service life of the rails.
Welcome to inquire the price list and quotation, we are one of the leading railway track manufacturers and suppliers in China!
XINGRAIL is an ISO 9001/2008 certified company. All processes are carried out in accordance with the requirements of ISO quality management system, from the supply of commodity control to the finished product out of the factory, we are in accordance with the standard procedures, and we have a strict quality control system for the suppliers:



|
ISCOR |
|||||||
|
SIZE |
DIMENSION(mm) |
WEIGHT (kg/m) |
MATERIAL |
LENGTH (m) |
|||
|
HEAD A (mm) |
HEIGHT B (mm) |
BASE C (mm) |
WEB D (mm) |
||||
|
15KG |
41.28 |
76.2 |
76.2 |
7.54 |
14.905 |
700 |
9 |
|
22KG |
50.01 |
95.25 |
95.25 |
9.92 |
22.542 |
700 |
9 |
|
30KG |
57.15 |
109.54 |
109.54 |
11.5 |
30.25 |
900A |
9 |
|
40KG |
63.5 |
127 |
127 |
14 |
40.31 |
900A |
9-25 |
|
48KG |
68 |
150 |
127 |
14 |
47.6 |
900A |
9-25 |
|
57KG |
71.2 |
165 |
140 |
16 |
57.4 |
900A |
9-25 |
Recommended Crane Rail Clips for SABS Standard Rails
Based on the technical parameters of the SABS Standard Rails, the choice of crane rail clips depends on the rail’s base width and the operational requirements. Below are the recommended clip pairings for each specific SABS rail type:
1. For Light-Duty Rails (15KG, 22KG)
2. For Medium-Duty Rails (30KG, 40KG)
3. For Heavy-Duty Rails (48KG, 57KG)
Selection Quick-Reference Table
|
SABS Rail Type |
Base Width (mm) |
Recommended Bolted Clip |
Recommended Welded Clip |
|
15KG |
76.2 |
||
|
22KG |
95.25 |
||
|
30KG |
109.54 |
||
|
40KG |
127 |
||
|
48KG |
127 |
||
|
57KG |
140 |
