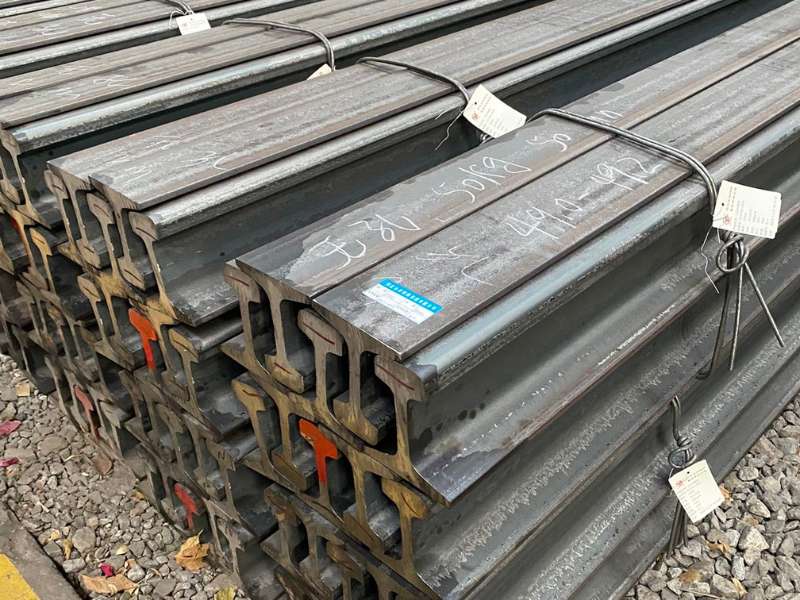

Rail Weight Calculator for Crane Rails

Crane operations demand precision. Engineers must ensure stability and safety in every project. A rail weight calculator for crane rails serves as an important tool for these professionals. It helps you determine the exact load requirements for your track system. Inaccurate calculations can lead to structural failures or costly downtime. This guide explores the standards, formulas, and specifications you need for success.

Rail Weight Calculator for Crane Rails

Accurate weight calculation ensures safe crane operations. You can’t stress enough how important accuracy is here. A specific rail weight calculator for crane rails prevents overloading. It also helps engineers select the correct rail profile for the job.

We use a standard formula for these calculations:
Total Rail Weight = (Total Length ÷ Rail Section Length) × Rail Weight

Several factors influence the final weight figures. The load capacity is very important. Heavier loads require denser rails. Rail dimensions also change the outcome. Height, base width, and head width all add mass to the system. You must consider these variables carefully.

How to Use a Rail Weight Calculator for Crane Rails

Using a calculator simplifies the planning process. You need specific data points to get accurate results. Follow these steps for the best outcome.

First, identify the rail weight per meter. You might see this in kg/m or lb/yd. Next, determine the rail section length. This is the length of individual rail pieces. At last, measure the total track length required for the project.

Example Calculation:

Imagine you need a track length of 100 meters. Your rail weighs 60kg per meter. The section length is 12 meters.

• Input the total length (100m).

• Input the weight (60kg/m).

• The calculator determines the total weight based on these inputs.

Consequently, you get a precise figure for procurement. This process reduces waste and saves money.

You can use below rail weight calculator :

Rail Weight Per Meter for Cranes

Countries establish different standards for rail weights. You must know the local regulations for your project.

USA Standards

American projects often use weights like 57kg/m, 60kg/m, or 65kg/m. Engineers frequently use pounds per yard (lb/yd) here as well.

German Standards

Germany typically specifies 54kg/m or 60kg/m rails. These align with DIN standards.

Chinese Standards

China offers a wide range. You can find rails from 9kg/m up to 75kg/m. Heavy industrial cranes use the higher end of this spectrum.

Rail weight directly impacts crane performance. Heavier rails support larger loads. They also reduce vibration during operation. Lighter rails work well for smaller hoists. However, they cannot withstand heavy industrial use.

Crane Rail Dimensions and Weight: Key Specifications

Dimensions define the physical profile of the rail. You must match these dimensions to the crane wheels. A mismatch causes excessive wear. The table below details common crane rail specifications.

Table 1: Common Crane Rail Dimensions and Weights

Rail Type	Head Width (mm)	Base Width (mm)	Rail Height (mm)	Waist Thickness (mm)	Weight (kg/m)
QU70	70	120	120	28	52.80
QU80	80	130	130	32	63.69
QU100	100	150	150	38	88.96
QU120	120	170	170	44	118.10
A100 (DIN)	100	200	95	–	74.30
A120 (DIN)	120	220	105	–	100.00

Rail height affects the vertical strength. Base width provides stability on the foundation. Head width must match the wheel tread. Improper dimensions lead to derailment risks.

Heavy-Duty Crane Rail Weight and Load Capacity Analysis

Heavy-duty operations require robust rails. The relationship between rail weight and load capacity is linear. Heavier rails support higher axle loads.

Key Factors for Heavy-Duty Rails:

• Axle Load: This is the force applied by the crane wheels. High axle loads demand heavy rails like QU100 or QU120.

• Vibration Resistance: Massive rails absorb vibrations better. This protects the crane structure from fatigue.

• Durability: High-speed operations wear down soft rails quickly. Heavy rails usually contain harder steel compositions.

Furthermore, you must analyze the frequency of use. Cranes operating 24/7 need thicker rails. The extra material extends the service life significantly.

Crane Rail Section Length Calculator: Why It Matters

Rail section length impacts installation costs. Standard lengths vary by region and manufacturing capability.

Common Lengths:

• USA: 12m, 24m, 25m.

• China: 12.5m, 25m, 50m, 100m.

Longer rail sections offer distinct benefits. They reduce the number of joints in the track. Fewer joints mean smoother crane travel. It also lowers maintenance requirements. Welding joints takes time and money.

Specifically, a rail weight calculator for crane rails helps plan logistics for these lengths. You can calculate the weight of individual sections for transport. This ensures your trucks can handle the load safely.

Rail Weight Standards for Cranes

Global commerce requires understanding international standards. Different bodies govern these specifications.

• GB Standard (China): Widely used in Asia. Covers light and heavy rails.

• UIC (International Union of Railways): Common in Europe. Focuses on strict tolerance levels.

• AREMA (USA): Sets the benchmark for North American projects.

Each standard dictates specific chemical compositions. They also define allowable tolerances for shape. For instance, a UIC 60 rail differs slightly from a GB 60kg rail. You must verify compatibility before purchasing.

Crane Rail Weight Comparison Chart

Comparing rail weights helps you make informed decisions. This chart highlights common industrial choices.

Table 2: Industrial Rail Weight Comparison

Application	Recommended Rail Type	Typical Weight Range
Light Warehouse Cranes	P18 – P24	18kg/m – 24kg/m
Medium Factory Cranes	P38 – P43	38kg/m – 43kg/m
Heavy Port Cranes	QU80 – QU100	63kg/m – 89kg/m
Steel Mill Cranes	QU120 – A120	100kg/m – 118kg/m

Port cranes face harsh conditions. They need the heaviest rails available. Conversely, small warehouse hoists function well on lighter tracks. Using a rail weight calculator for crane rails helps compare these options effectively.

Industrial Crane Rail Specifications: What You Need to Know

Industrial rails must meet rigorous specifications. Material composition determines strength.

Material Grades:

• U71Mn: A common manganese steel. It offers excellent wear resistance.

• 900A: A high-strength grade used in Europe.

Tolerances and Flatness:

Manufacturers must adhere to strict flatness rules. Uneven rails cause vibration. This damages the crane wheels over time. Tolerances for height and width usually sit within millimeters.

Safety depends on these specs. You cannot compromise on material quality. Substandard steel cracks under heavy loads. Always request mill certificates from your supplier. These documents prove compliance with the standards.

Common Questions and Answers

1. What is the formula for calculating crane rail weight?
   The formula is: Total Rail Weight = (Total Length ÷ Rail Section Length) × Rail Weight.
2. Why is rail weight important for crane operations?
   Rail weight determines the load capacity, stability, and durability of the crane rail system.
3. What are the standard rail weights for cranes?
   Common weights include 57kg/m, 60kg/m, and 65kg/m.
4. How does rail section length affect crane rail installation?
   Longer rail sections reduce the number of joints.
5. What materials are used for crane rails?
   Common materials include U71Mn and 900A, known for their high strength and durability.
