Choosing the wrong fastener for a crane runway is costly. If the clip does not match the rail head geometry, clamping force drops — and the rail shifts, wears unevenly, or derails under load. This guide helps engineers and procurement teams select the right CR80 rail clips for every application, from port gantry cranes to automated warehouse systems.
What Is CR80 Rail and Why Clip Selection Matters
CR80 is a GB-standard crane rail defined by a nominal 80 mm head width. It is widely used across Chinese-built crane runways and increasingly specified in export projects. Each metre of CR80 rail weighs approximately 63.7 kg, making it a mid-to-heavy crane rail section.
Clip selection matters because the fastener must grip both the rail head and the base. A clip sized for a wider rail, such as CR100, will sit loose on the 80 mm head. That gap allows micro-movement with every wheel pass. Over time, micro-movement destroys the rail pad and fatigues the beam flange beneath it. Correct CR80 rail clips eliminate that gap entirely.
CR80 Rail Specifications at a Glance
The table below summarises the key dimensions. For full section drawings and tolerance data, refer to the authoritative CR80 rail dimensions page.
| Parameter | CR80 (reference) |
|---|---|
| Head width | 80 mm |
| Rail height | ≈ 130 mm |
| Base width | ≈ 130 mm |
| Unit weight | ≈ 63.7 kg/m |
| Standard | GB/T 2585 |
Always verify final dimensions against certified mill drawings before ordering fasteners. The values above are reference figures.
CR80 vs Adjacent Crane Rails
Knowing where CR80 sits in the crane rail family helps when a project upgrades or substitutes rail sections. The table below compares CR80 with the four sections most often encountered on the same sites. For a broader overview, see our crane rail dimensions article.
| Dimension | CR80 | CR100 | CR120 | QU80 | A75 (DIN 536) |
|---|---|---|---|---|---|
| Head width (mm) | 80 | 100 | 120 | 80 | 75 |
| Rail height (mm) | ≈ 130 | ≈ 150 | ≈ 170 | ≈ 130 | ≈ 110 |
| Base width (mm) | ≈ 130 | ≈ 150 | ≈ 170 | ≈ 130 | ≈ 135 |
| Unit weight (kg/m) | ≈ 63.7 | ≈ 88.9 | ≈ 118.1 | ≈ 63.7 | ≈ 56.2 |
| Clip / clamp series | 3120 / 3220 / 3222 / 3224 | Larger-opening clamp | Widest-opening clamp | Same as CR80 | DIN A series |
Two points stand out. First, CR80 and QU80 share identical head profiles — QU80 is simply the older GB 3426 designation for the same section, so clips specified for one fit the other. Second, a switch from CR80 to CR100 requires a different clamp series entirely, even though the visual difference looks small.

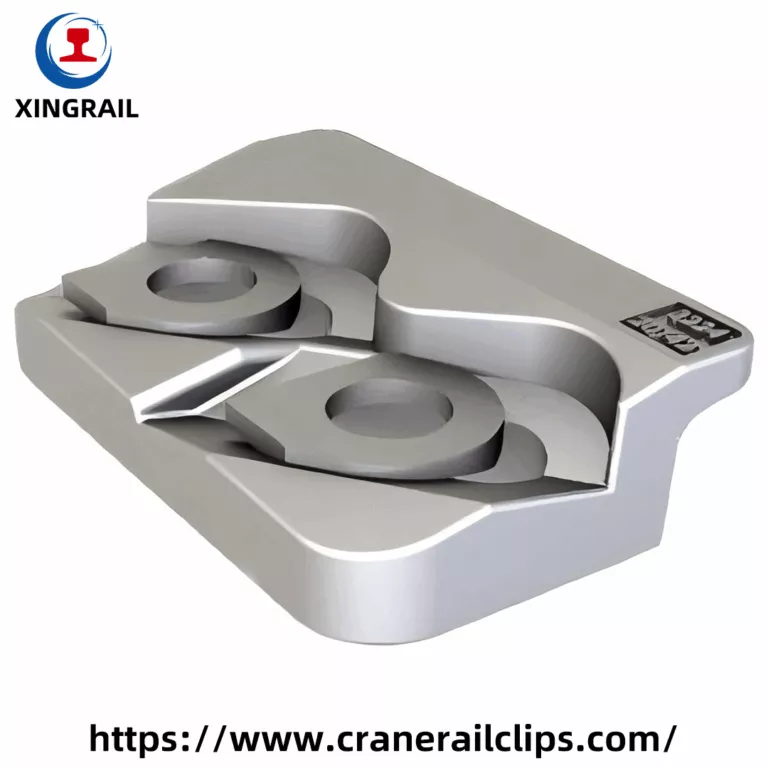

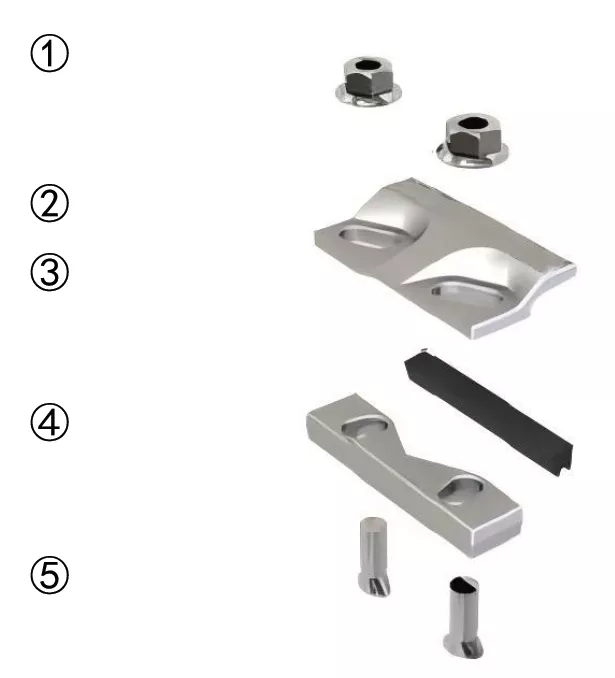

Clip and Clamp Options for CR80 Rail
Three fastener types are available for CR80 runways. Each suits a different operating environment.

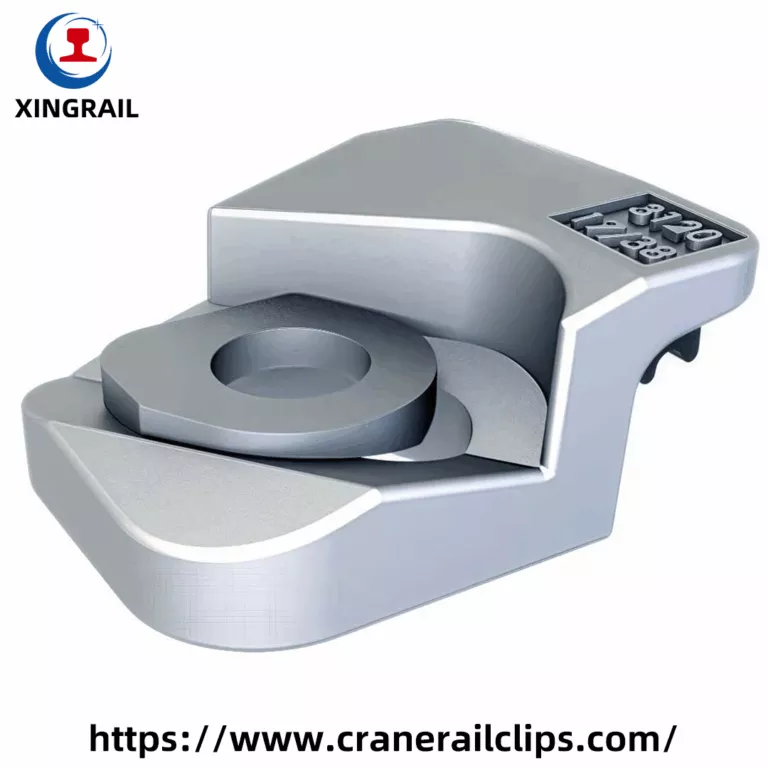

Self-locking forged crane rail clips are the most common choice for new installations. The spring-steel body flexes onto the rail foot without bolts, which means zero loose hardware and no periodic re-torquing. Explore the self-locking crane rail clips product page for load ratings and series options (3120, 3220, 3222, 3224).
Welded forged fastening clamps are preferred where lateral forces are unusually high, such as port quay cranes or steel-mill ladle transfer cars. The weld creates a rigid, permanent connection between the clamp body and the beam flange. See the forged fastening clamp product page for dimensions and weld-prep requirements.
Bolted adjustable clamps suit runways that need periodic lateral realignment. The slotted bolt hole allows the rail to be nudged sideways without replacing the clamp. This type is common in automated storage systems where rail gauge tolerances are tight.
For a full comparison of clamp families across load classes, see the crane rail clamps overview. If your design also includes a rubber or polymer buffer layer beneath the rail, the railway pads article covers compatible pad options.
Application Scenarios
| Application | Recommended fastener | Key reason |
|---|---|---|
| Port quay crane / gantry (heavy duty) | Welded forged clamp | High lateral load, rigid grip |
| Steel mill / foundry (high-temperature) | Self-locking forged clip | Maintenance-free, tolerates thermal cycling |
| Warehouse / automated storage (AS/RS) | Self-locking clip (light series) | High precision, low vibration |
| Runway requiring frequent lateral adjustment | Bolted adjustable clamp | Lateral re-set without clamp replacement |
Frequently Asked Questions
Q1: What is a CR80 rail?
CR80 is a Chinese GB/T 2585 crane rail with an 80 mm head width and a reference mass of about 63.7 kg/m, designed for heavy crane runways.
Q2: Which rail clips fit CR80 rail?
Self-locking forged clips in the 3120 / 3220 / 3222 / 3224 series, plus welded or bolted forged fastening clamps sized for the 80 mm head and ≈ 130 mm base.
Q3: How much does CR80 rail weigh per metre?
Approximately 63.7 kg/m. Confirm the exact certified figure on the CR80 rail dimensions page before finalising a load calculation.
Q4: What is the difference between CR80 and QU80 rail?
They are the same physical section. CR is the current GB/T 2585 designation; QU is the legacy GB 3426 label. Both have an 80 mm head, so the same clips fit either marking.
Q5: Can CR80 rail clips be used on ASCE 85 or 115RE rail?
No. ASCE and AREA rail sections have different head widths and base profiles. Each section requires clamps matched to its own geometry.
