Pandrol compatible rail clips are interchangeable elastic fasteners manufactured to Pandrol dimensional and mechanical standards — they are not genuine Pandrol products. Selecting the right replacement requires matching four parameters: rail section profile, toe load (clamping force), shoulder geometry and bolt spacing, and insulator plus rail pad geometry. Xingrail supplies Pandrol-compatible rail clips and e-Clip replacements for both railway and crane rail applications.
What “Pandrol Compatible” Actually Means
“Compatible” means dimensionally and mechanically interchangeable, not a counterfeit and not an OEM product. A genuine Pandrol-compatible rail clip must replicate the original toe load curve, seating geometry, and fatigue life. Simply copying the shape is not enough.
Compatible ≠ Counterfeit
A Pandrol-type replacement clip must reproduce the original clamping force range, spring wire diameter, and shoulder seating. Suppliers should provide material certificates and third-party test reports. Without documentation, you cannot confirm the clip will hold load or last the required cycle life.
Four Parameters That Must Match
Before sourcing any replacement, confirm all four:
- Rail section — foot width and head profile (115RE, UIC60, 60 kg, etc.)
- Toe load — clamping force in kN; Pandrol e-Clip typically 9–11 kN
- Shoulder type and bolt spacing — the clip must seat fully in the installed shoulder
- Insulator and rail pad geometry — wrong geometry breaks electrical isolation and signal continuity
The Pandrol Clip Family You Are Cross-Referencing
Pandrol e-Clip (e2007 / e2055 / PR601A)
The e-Clip is a bolt-free elastic clip that grips the rail foot directly. It is the most widely replaced Pandrol-type clip in the market. Primary rail sections: UIC60, 115RE, 60 kg. Installation uses a hammer or dedicated tool into a cast or welded shoulder. Single clips can be replaced individually, no need to change the full assembly.
Pandrol FASTCLIP (FC Series)
The FASTCLIP is a pre-assembled group that enables mechanised installation on high-throughput mainlines. Because the components are pre-assembled into a unit, a like-for-like compatible replacement requires sourcing the full assembly, not just the spring clip.
e-Clip vs FASTCLIP vs W-Clip for Replacement
When ordering Pandrol compatible rail clips, the key distinction is assembly scope. e-Clip and W-clip types can be swapped clip-for-clip once you confirm toe load and shoulder fit. FASTCLIP systems require a full unit replacement. Mixing clip types across shoulder systems causes misalignment and load loss.
Compatibility Matrix
| Parameter | Pandrol e-Clip | Pandrol FASTCLIP | Vossloh SKL-14 | Xingrail Elastic Clip | Xingrail Crane Clip |
|---|---|---|---|---|---|
| Rail section | 115RE / UIC60 / 60 kg | Railway (pre-assembled) | Heavy/high-speed rail | Railway / industrial | CR80 / QU80 crane rail |
| Toe load | 9–11 kN | Per OEM spec | 10–12 kN | Per client test | Per client test |
| Material | 60Si2MnA spring steel | Spring steel | 38Si7 spring steel | Spring steel + coating | Forged steel |
| Installation | Hammer / tool | Mechanical pre-assembly | Hammer | Hammer / self-locking | Hammer + weld base option |
| Fatigue life | ≥3 million cycles | Per OEM spec | ≥5 million cycles | Per client test | Per client test |
| Replacement scope | Single clip | Full unit | Brand-specific | Dimension-matched swap | Crane runway only |
Cross-reference our rail clip specifications table, it lines a Pandrol-type clip up against E-2055 and SKL-14 on material, diameter and clamping force.
Four Things That Break Pandrol Interchange
1. Toe Load Drift or Wrong Wire Diameter
If the replacement clip delivers clamping force outside the design range, the rail foot will creep under dynamic load. A clip that looks identical but uses a smaller wire diameter will be softer and lose hold over time.
2. Shoulder and Bolt Spacing Mismatch
This is the leading cause of failed interchange. A clip that does not seat fully in the installed shoulder applies uneven load and can eject under vibration. Always measure the installed shoulder before ordering. Before you order, confirm which types of rail clips your sleeper and shoulder system accepts.
3. Insulator and Rail Pad Geometry Mismatch
An incompatible insulator block breaks electrical isolation. On signalled track, this creates stray current paths and can trigger false-clear signal states. Rail section and toe load tolerances are defined in our rail fastening specifications.
4. Corrosion Protection and Fatigue Mismatch
Coastal, tunnel, and heavy-haul environments require upgraded surface protection. A standard spring steel clip without coating will corrode and lose fatigue life faster than the design cycle count.
Railway Rail vs Crane Rail — Which Compatible Clip
Pandrol’s core application is railway track, e-Clip on concrete sleepers with UIC60 or 115RE rail. Most railway buyers start from the AREA-standard railway track fastening profile their line runs.

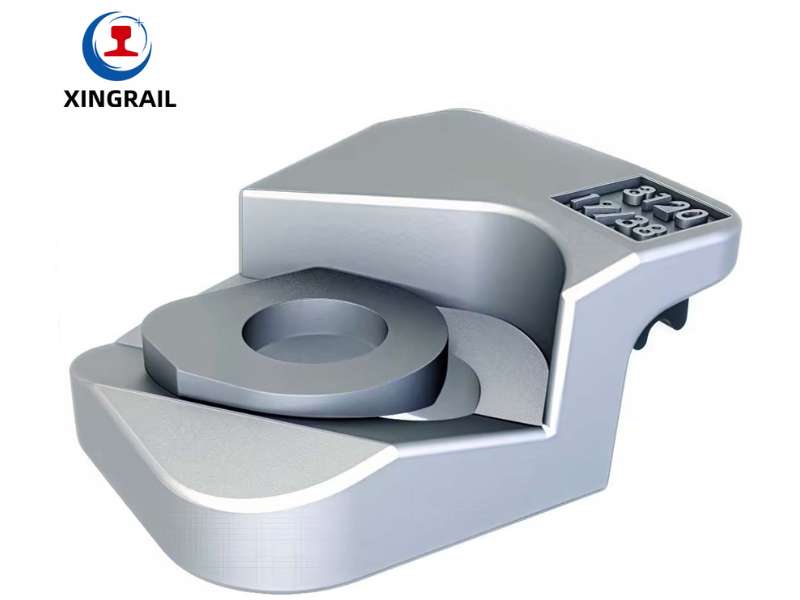

Crane runways are a different application entirely. Overhead cranes, gantry cranes, and port stackers impose sustained vertical load plus repeated lateral surge. A Pandrol-type railway e-Clip is not rated for this load pattern. On a crane runway, forged self-locking rail clips hold the sustained load a railway e-Clip cannot. Do not substitute a railway elastic clip on a crane runway without engineering sign-off.
Sourcing Pandrol-Compatible Clips from Xingrail
Xingrail manufactures elastic rail fasteners and crane rail clips across the full range, from Pandrol-type e-Clip replacements to heavy forged crane runway clips.
Every shipment is supported by material certificates, spring hardness test reports, and optional third-party inspection. Sample orders are available before production commitment.
MOQ, lead time, and custom tooling for non-standard shoulder geometries are available on request. Supply to drawing or physical sample is supported — provide your rail section and required quantity to receive a quote.
Cross-Reference Checklist Before You Order
Use this five-step check before placing any order for Pandrol compatible rail clips:
- Rail section — confirm foot width, head profile, and weight per metre
- Toe load — specify required clamping force in kN; ask for the test certificate
- Shoulder type and spacing — measure the installed shoulder, not just the old clip
- Corrosion protection and insulator class — match the environment rating
- Lead time and quality documents — confirm material cert and fatigue test data before committing
Match your rail section and clamping requirement in seconds with our rail clip selector.
Frequently Asked Questions
Q1: Is a Pandrol-compatible rail clip the same as a genuine Pandrol clip?
No. A Pandrol-compatible clip is an interchangeable replacement manufactured to Pandrol dimensional standards, it is not an OEM product. Selection must be based on toe load, rail section, and shoulder geometry, supported by material and corrosion test documentation.
Q2: What do I need to measure to cross-reference a Pandrol clip?
Four items: rail section profile, clamping force (toe load) in kN, shoulder type and bolt spacing, and insulator block plus rail pad geometry. Providing a drawing or physical sample significantly speeds up the matching process.
Q3: Can a Pandrol e-Clip replacement be used on crane rails?
Not recommended. Crane runways involve sustained vertical load and repeated lateral impact, a load pattern a railway elastic clip is not designed for. Forged self-locking crane rail clips are the correct product for this application.
Q4: Which rail sections do Pandrol-compatible clips fit?
Pandrol-type clips primarily fit railway sections, 115RE, 60 kg, UIC60, and similar profiles. For crane rail sections such as CR80 or QU80, heavy-duty crane rail clips are required; railway e-Clip geometry does not transfer directly.
Q5: Can you supply Pandrol-compatible clips to my drawing or sample?
Yes. Xingrail can manufacture to customer drawings or matched from a physical sample, with material certificates and third-party test reports included. Provide your rail section and order quantity to receive a quotation.
